Why Incorrect HVAC Sizing Wastes Energy

How incorrect sizing during installation wastes energy is simple: HVAC equipment that is too large starts and stops too often, while equipment that is too small runs too long and may rely on electric backup heat. Either mismatch raises power use, strains parts, and can leave rooms humid, uneven, or uncomfortable. For homeowners planning AC installation in Birmingham, AL, the problem is easy to miss because a new system may still cool the house. Yet improper installation practices can raise heating and cooling energy use by as much as 30%, turning a comfort upgrade into years of avoidable utility waste.

Need a clear next step? Explore our air conditioning services or schedule professional AC installation.

I'm Steve Etress, and when you are ready to avoid these losses, schedule professional AC installation.

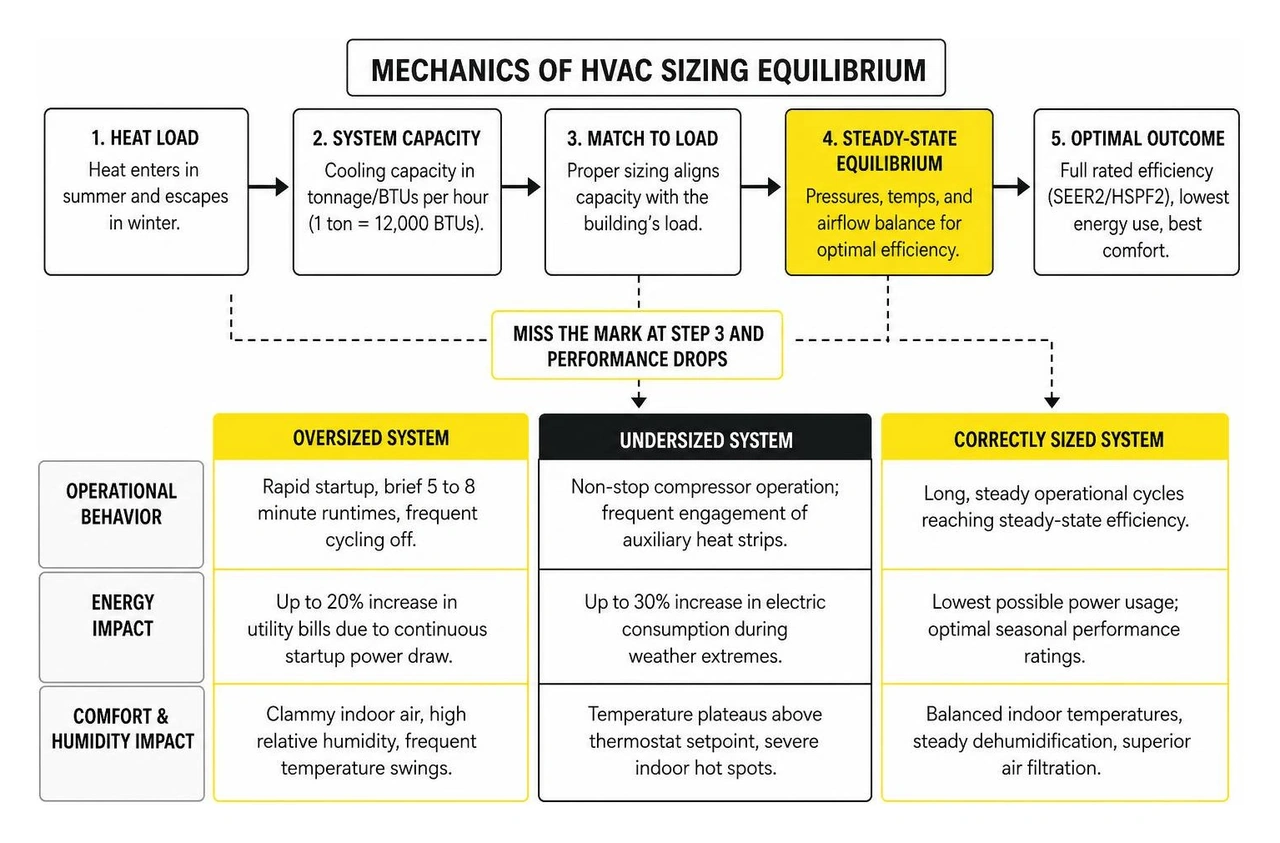

Mechanics: How Incorrect Sizing During Installation Wastes Energy

Understanding how incorrect sizing during installation wastes energy begins with the basic principles of thermodynamics and refrigeration capacity. Residential cooling capacity is measured in tonnage or British Thermal Units (BTUs) per hour, where one ton of cooling equals 12,000 BTUs. When an HVAC system is selected for a home in Birmingham, Vestavia Hills, or Hoover, it must match the structure's exact thermal load—the rate at which heat enters in summer and escapes in winter.

When system capacity matches building load, the unit reaches steady-state equilibrium. This is the operating condition where refrigerant pressures, temperatures, and coil airflow achieve optimal thermodynamic balance. In steady-state operation, modern equipment delivers its full rated efficiency (SEER2/HSPF2). However, field research reveals that up to 95% of HVAC systems installed across the United States are incorrectly sized, with up to 75% of active systems being oversized.

To understand how performance drops when installation specs miss the mark, explore How Proper AC Installation Affects Long-Term Performance.

Short Cycling Power Surges: How Incorrect Sizing During Installation Wastes Energy in Oversized Systems

When an oversized central air conditioner or heat pump fires up, it blast cold air into the living space at maximum capacity. Because the unit provides far more cooling tonnage than the room load requires, the thermostat setpoint is satisfied in just 5 to 8 minutes. The system then shuts off abruptly. This cycle repeats multiple times per hour, a phenomenon known as short cycling.

Short cycling is devastating to energy efficiency because of how electrical equipment draws power. During the initial startup phase, an AC compressor and blower motor experience a massive peak electrical draw—often 3 to 5 times higher than their running load amperage. An oversized unit that shuts down after 8 minutes spends 100% of its operating time in this highly inefficient startup window.

Under standard laboratory testing, HVAC engineers measure this loss using the Cyclic Degradation Coefficient ($C_D$). An air conditioner requires 10 to 15 minutes of uninterrupted operation for refrigerant pressures to equalize and the evaporator coil to drop to its optimum operating temperature. When a unit short cycles, it never reaches steady-state equilibrium, burning excessive kilowatt-hours without delivering full cooling capacity. Furthermore, these constant electrical surges accelerate internal compressor wear, leading to premature mechanical breakdown.

Continuous Runtimes: How Incorrect Sizing During Installation Wastes Energy in Undersized Systems

On the opposite end of the spectrum, an undersized heating and cooling system lacks the physical tonnage to meet peak thermal loads during hot Alabama summers or cold winter nights in Chelsea and Pelham. On a 95°F afternoon, an undersized air conditioner runs continuously without stopping, yet fails to bring the indoor temperature down to the thermostat setpoint.

While continuous operation in high-efficiency variable-speed equipment can be desirable, continuous operation in an undersized single-stage unit means the system operates constantly at maximum power draw under high heat pressure. The true energy penalty of undersizing becomes severe during winter heating cycles on air-source heat pumps. When an undersized heat pump cannot maintain indoor heat levels, the system automatically triggers auxiliary electric resistance heat strips.

Electric heat strips consume up to three times more electricity than a heat pump's standard compressor heating cycle. Relying on resistive heat to bridge the gap caused by incorrect sizing leads to dramatic spikes in monthly utility consumption.

The Root Causes: Why Sizing Errors Occur and How Ductwork Factors In

If proper sizing is essential for energy efficiency, why are sizing errors so prevalent across central Alabama? The primary reason lies in outdated installation practices. Historically, many contractors relied on informal rules of thumb—such as allocating one ton of cooling capacity for every 500 square feet of living space.

These square-footage shortcuts completely ignore crucial thermal building factors, including:

• Wall and attic insulation R-values
• Window area, glass coatings, and solar heat gain coefficients
• Air infiltration rates and envelope tightness
• Ceiling heights and open floor plan geometry
• Home orientation relative to direct solar exposure

To learn how proper physical dimensions match building heat loads, consult our detailed AC Unit Sizing Guide.

Furthermore, contractors often pad equipment sizing out of fear of customer service calls on peak summer days. Adding an extra half-ton or full ton of capacity seems like a safe buffer, but this safety margin padding guarantees that the equipment will run inefficiently for the remaining 95% of the cooling season.

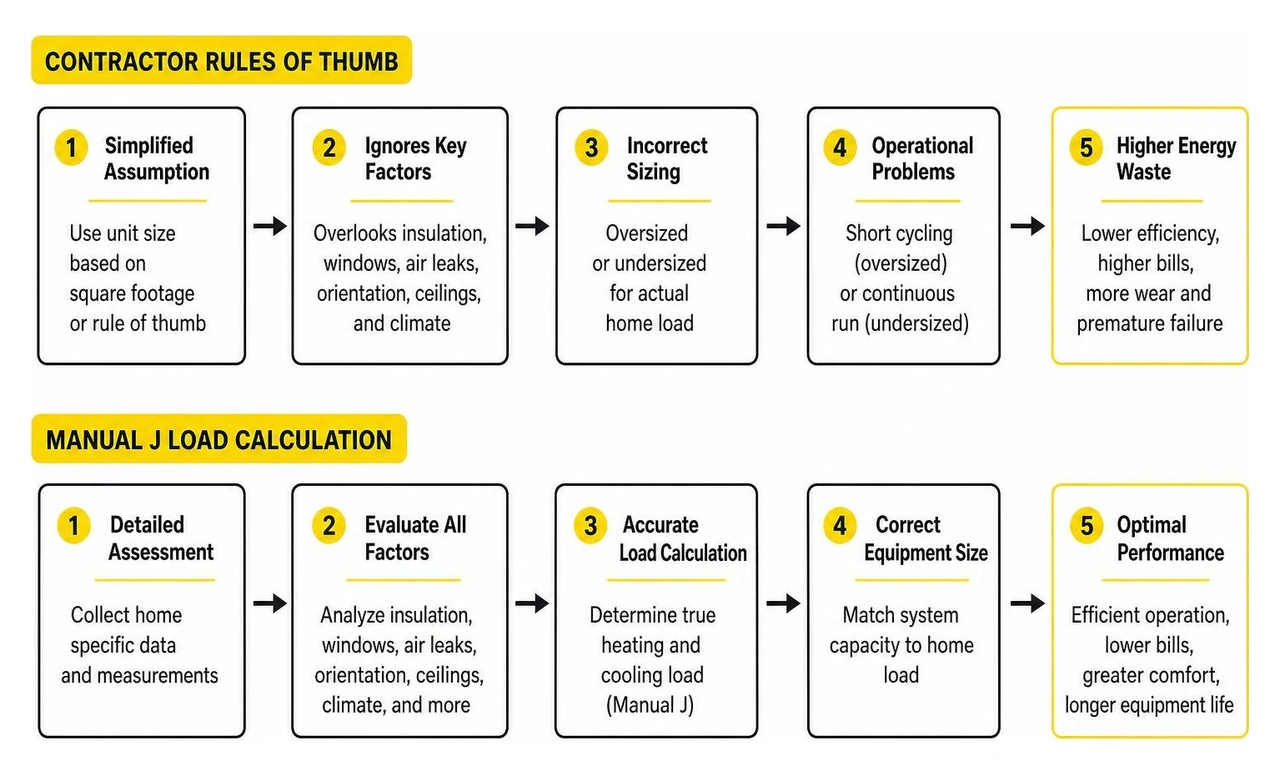

Manual J Load Calculations vs. Flawed Rules of Thumb

The industry standard for accurate sizing is the Air Conditioning Contractors of America (ACCA) Manual J Load Calculation. A true Manual J calculation evaluates the precise building envelope dynamics of your specific home. Technicians input window orientation, attic insulation thickness, duct locations, local climate design temperatures, and blower door air-leakage measurements into certified software.

Calculated engineering loads demonstrate why rules of thumb fail. For example, two neighboring homes in Trussville with identical 2,200-square-foot floor plans may have radically different cooling needs. A home built with modern low-E windows and spray-foam attic insulation might only require a 2.5-ton system, whereas an older home with single-pane windows and minimal insulation might require 4 tons. Installing a 4-ton unit in the well-insulated home based on square footage guarantees extreme short cycling and elevated power bills.

How Restrictive Ductwork Mimics and Amplifies Sizing Errors

An improperly designed or undersized duct network can make a correctly sized unit behave exactly like an oversized one. If a home requires 3 tons of cooling, the duct system must be designed to carry approximately 1,200 Cubic Feet per Minute (CFM) of airflow (roughly 400 CFM per ton). If an installer puts a 3-ton unit on a duct system built for only 2 tons, severe airflow bottlenecks occur.

High external static pressure forces the blower fan to work harder, consuming significantly more electrical power. Restricted airflow prevents heat transfer across the evaporator coil, causing coil temperatures to plummet. This often leads to frozen evaporator coils, liquid refrigerant floodback to the compressor, or system shutdowns on internal thermal overload switches.

If you suspect your system was installed with mismatched ductwork, check Is Your AC Installation Done Incorrectly.

Impact on Home Comfort, Humidity, and Modern Heat Pumps

An air conditioner does two distinct jobs: sensible cooling (lowering the air temperature shown on your thermostat) and latent cooling (removing moisture from the air). Dehumidification requires sustained air movement across a cold evaporator coil. Water vapor condenses on the coil fins and drains away through condensate lines.

When an oversized unit cools the air in 6 to 8 minutes, it satisfies the thermostat's sensible cooling setting before latent cooling can take place. The result is cold, clammy indoor air with elevated relative humidity.

High Humidity and Indoor Air Quality Degradation

When indoor relative humidity stays above 55% during humid summer months in Sylacauga or Alabaster, occupants feel uncomfortable even at 72°F. To offset the heavy, clammy feeling, homeowners frequently lower their thermostat setpoint to 68°F or 67°F.

This behavioral adjustment drives power usage even higher. According to research from the National Institute of Standards and Technology (NIST), dropping the thermostat setpoint by just 4°F on a system suffering from installation faults can increase seasonal cooling energy consumption by up to 88%.

Furthermore, elevated indoor humidity creates ideal conditions for mold, mildew, and dust mite proliferation inside ductwork and living spaces. High indoor humidity and restricted airflow compromise indoor air quality, circulating dust particles and mold spores through the home. To learn how local environmental factors worsen these issues, read How Alabama Heat and Humidity Make Your AC Work Harder.

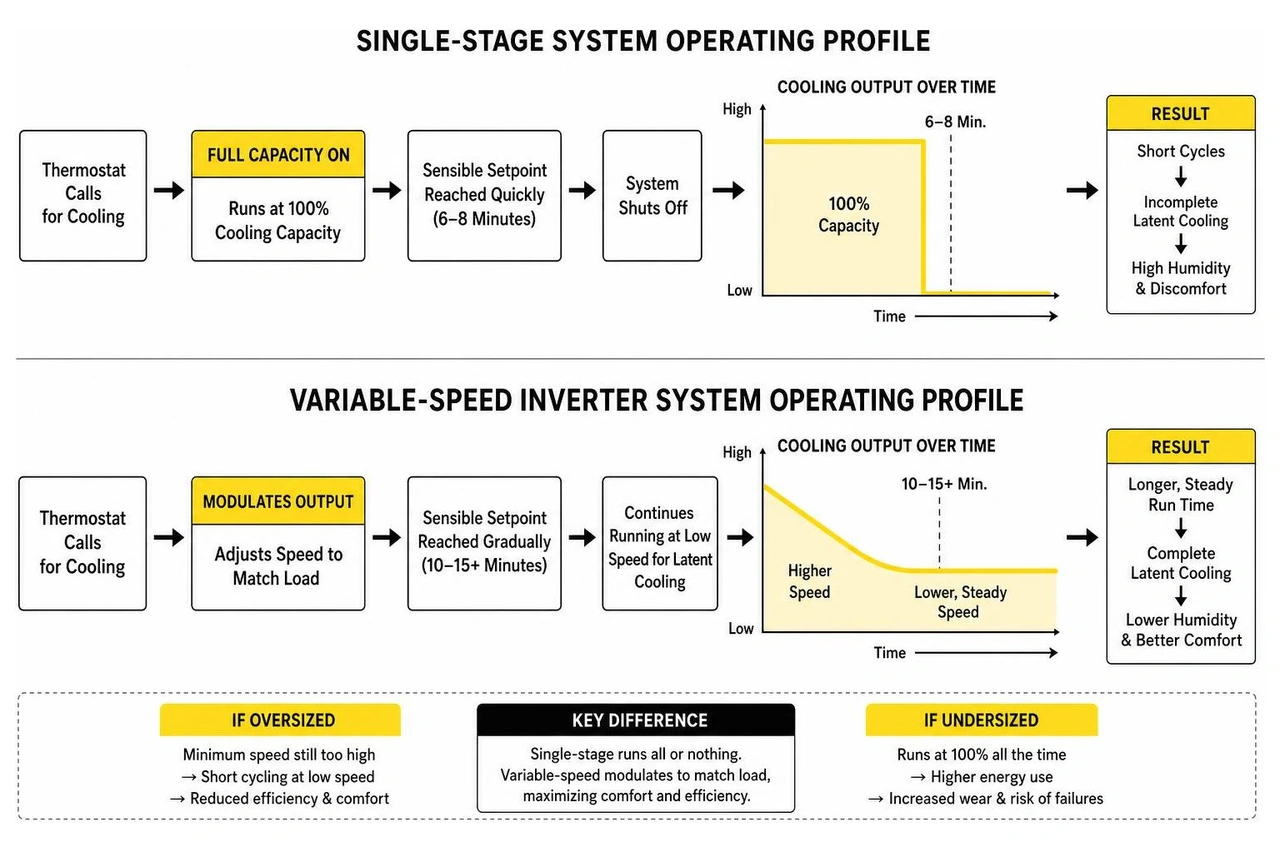

Variable-Speed Inverters vs. Single-Stage Systems

Modern multi-stage and variable-speed inverter HVAC systems adjust compressor speeds to match real-time cooling loads. While inverter technology provides superior flexibility, how incorrect sizing during installation wastes energy still applies to these advanced systems.

To understand capacity modulation, see our detailed Single Stage vs Two Stage vs Variable Speed AC Comparison.

If a variable-speed heat pump is grossly oversized, its minimum operating stage (often 25% to 40% of full capacity) may still exceed the home's cooling demand during moderate weather. The inverter unit is forced to cycle on and off at its lowest capacity setting, completely negating its high-efficiency part-load performance ratings.

On the other hand, if an inverter heat pump is undersized, it will spend its entire operating life running at 100% maximum speed, wasting power and suffering premature electronic driver failure.

The 15-Year Financial Impact and Evaluating Installation Quotes

The financial consequences of incorrect sizing compound year after year. Over a standard 15-year system lifespan, accumulated energy waste can easily match or exceed the original investment in the entire system.

Cumulative Financial Toll Over Equipment Lifespan

When an HVAC system is improperly sized, energy waste is only part of the financial burden:

• Accelerated Mechanical Wear: Frequent start-stop cycles place immense electrical and mechanical stress on the compressor motor, capacitor, and contactors, shortening total equipment lifespan by 5 to 10 years.
• Frequent Service Calls: Severe static pressure spikes and short cycling cause frequent thermal overload trips, frozen coils, and blown blower motors, leading to repeated out-of-warranty repair service calls.
• Premature Replacement: A system designed to last 15 to 20 years may fail completely after just 8 to 10 years of continuous short cycling.

How Homeowners Can Verify Sizing on Installation Quotes

Homeowners can protect their investment by evaluating installation proposals carefully before committing to a contractor. Reviewing contractor quotes for proper engineering documentation ensures your new system delivers peak operating efficiency.

Before signing an installation agreement, ask your contractor the right diagnostic questions by reviewing Questions Before Choosing HVAC Contractor.

Check your installation proposal for these key requirements:

• Written Manual J Load Calculation: Ensure the proposal includes a detailed room-by-room load calculation report rather than a hand-written square-footage calculation.
• Realistic Outdoor Design Temperatures: Verify that the outdoor design temperature used in the calculation matches local weather data (e.g., 95°F summer cooling design for the Greater Birmingham area).
• Manual S Equipment Selection: Confirm that selected equipment capacity matches the calculated load using ACCA Manual S guidelines, ensuring total capacity falls between 95% and 115% of actual cooling demand.
• Ductwork Static Pressure Evaluation: Verify that the contractor inspected and measured the existing duct system to ensure it can support the required airflow capacity.
• AHRI Certificate Verification: Confirm that the outdoor unit, indoor coil, and furnace/air handler are matched and certified by the Air-Conditioning, Heating, and Refrigeration Institute (AHRI).

Frequently Asked Questions About HVAC Sizing

How does improper sizing affect indoor air quality and humidity?

Improper sizing impairs an air conditioner's ability to pull moisture out of the air. Oversized units shut down before completing a full dehumidification cycle, leaving indoor relative humidity above 55%. This damp environment promotes mold growth in ducts and dust mite growth in living areas. Additionally, undersized systems running with choked airflow draw attic dust, insulation fibers, and outdoor pollutants into leaky duct connections.

Can ductwork issues make a correctly sized AC unit act like an oversized one?

Yes. If ductwork is too small, crushed, or severely restricted, it chokes system airflow. Restricted airflow prevents heat transfer at the evaporator coil, dropping coil temperatures and causing short cycling from high thermal pressure or coil freezing. The equipment behaves as if it were oversized, wasting energy and suffering mechanical strain despite having the correct nominal tonnage.

How does incorrect sizing waste energy in modern variable-speed heat pumps?

An oversized variable-speed heat pump cannot drop its output below its minimum modulation threshold (typically 25-40% of rated capacity). In mild weather, even this minimum output overheats or overcools the living space, forcing the unit to cycle on and off inefficiently. An undersized variable-speed heat pump runs at 100% capacity continuously and engages high-resistance electric heat strips during cold weather, leading to heavy power consumption.

Conclusion

Understanding how incorrect sizing during installation wastes energy empowers homeowners to make informed decisions when upgrading their heating and cooling systems. Choosing equipment based on precise Manual J load calculations rather than quick rules of thumb protects your long-term energy efficiency, improves indoor comfort, and extends equipment lifespan.
