How to Understand Refrigerant Leaks and Their Repair Process

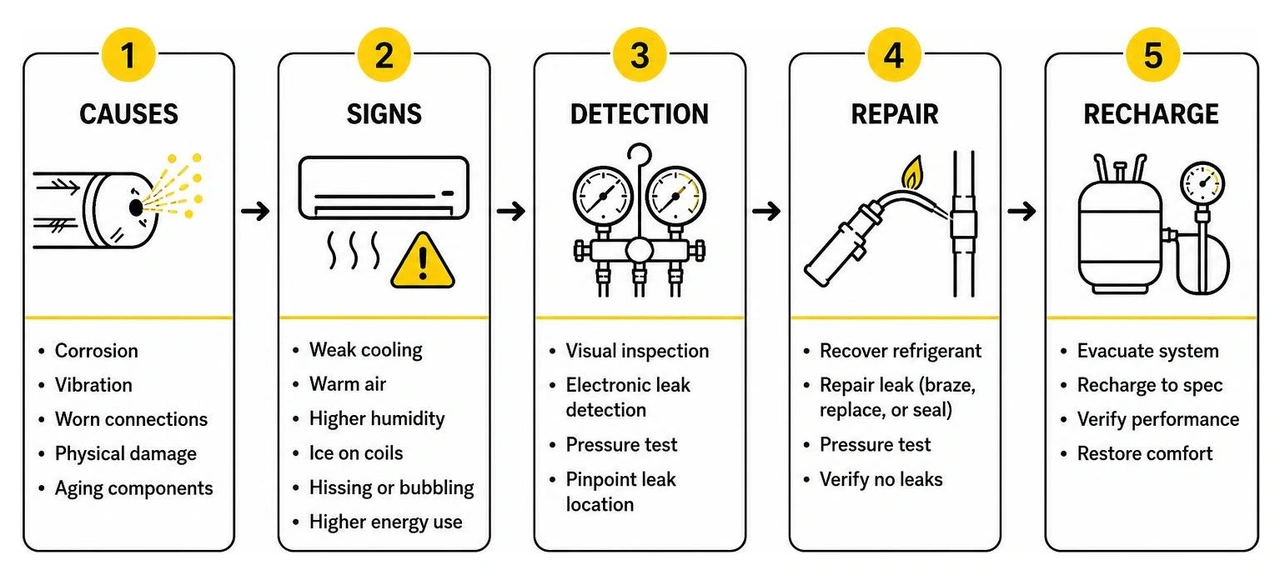

How Refrigerant Leaks Happen and How They Are Repaired

How refrigerant leaks happen and how they are repaired comes down to a sealed cooling system developing a small opening, then needing a precise professional fix. For homeowners needing AC repair in Birmingham, AL, a leak can mean weak cooling, frozen coils, higher humidity, and added strain on the compressor. Leaks may develop from corrosion, vibration, worn connections, or damaged copper lines. Refrigerant is not used up during normal operation, so low levels usually point to a leak. A technician must find the source, repair it, test the system, and recharge it correctly to restore safe, reliable comfort.

• A leak develops in a coil, line, fitting, or valve.

• Refrigerant escapes, reducing the system's ability to move heat.

• A professional locates and permanently repairs the damaged area.

• The system is pressure-tested, evacuated, and recharged to the manufacturer's specification.

Explore our air conditioning services | Schedule AC repair in Birmingham

I am Steve Etress, and the next sections explain the warning signs, repair process, and practical choices to make when your AC may be leaking refrigerant.

How Refrigerant Leaks Happen and How They Are Repaired: Primary Causes and Warning Signs

To understand how refrigerant leaks happen and how they are repaired, it helps to realize that your air conditioner or heat pump relies on a completely closed-loop system. Refrigerant circulates continuously between the indoor evaporator coil and the outdoor condenser coil, absorbing heat from inside your home and dumping it outdoors. Because it is a closed loop, refrigerant is never consumed like gasoline in a car. If the refrigerant level in your unit drops, a physical breach in the system is always the culprit.

Refrigerant leaks happen for several distinct reasons:

• Formicary Corrosion: Microscopic pinhole leaks occur when copper tubing reacts with moisture and volatile organic compounds (VOCs) found in household cleaners, paints, and air fresheners.

• Vibration Friction: Over time, the continuous vibration of the compressor causes copper line sets to rub against unit frames, concrete foundations, or internal brackets until a hole wears through.

• Thermal Expansion and Stress: Constant temperature fluctuations cause metal lines to expand and contract, putting strain on factory joints, brazed connections, and flare fittings.

• Corrosive Exterior Elements: Outdoor condenser coils are vulnerable to environmental pollutants, lawn equipment impacts, and acidic pet urine, which can rapidly eat away at aluminum and copper fins.

• Loose Valves and Fittings: Thermal cycles and mechanical movement can loosen Schrader valve cores (similar to tire valves) or service access caps.

When a breach occurs, recognizing the initial warning signs protects your system from catastrophic damage. You can read more about early red flags in our detailed guide on Warning Signs AC Refrigerant Is Leaking. When refrigerant escapes, your system loses its thermal exchange capacity, leading to warm discharge air, extended cooling cycles, frozen evaporator coils, and distinct hissing or bubbling noises near the refrigerant copper lines. Similar issues can also impact ductless mini-split systems, which we discuss in our post on Solving Refrigerant Issues in Ductless AC.

Understanding How Refrigerant Leaks Happen and How They Are Repaired in Aging Coils

The vast majority of residential refrigerant leaks occur inside the indoor evaporator coil. In humid climates like central Alabama, indoor air carries moisture alongside airborne household chemicals. When moisture condenses on the evaporator coil's copper tubing, these organic chemicals dissolve into the condensation to form mild formic acid.

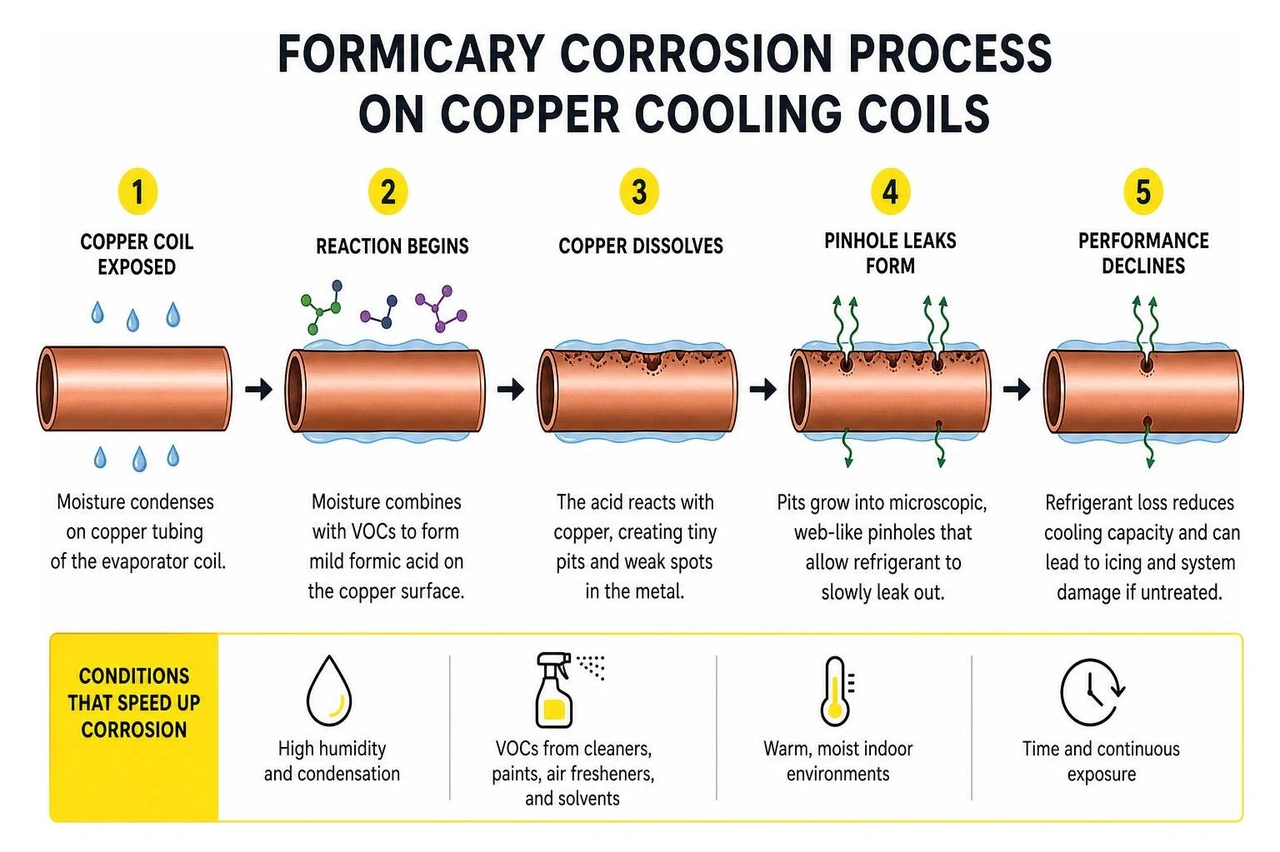

This process—known as formicary corrosion—creates microscopic, web-like pinhole structures through the copper wall. Because these pinholes are so small, refrigerant bleeds out slowly over several weeks or months. As pressure drops, the remaining refrigerant expands prematurely inside the coil, dropping coil temperatures below freezing. Moisture on the coil freezes into solid ice, insulating the coil and completely blocking airflow. Operating an cooling unit with an iced coil forces the compressor to work continuously without cooling the home, placing immense mechanical overload on the compressor windings.

Key Symptoms Demonstrating How Refrigerant Leaks Happen and How They Are Repaired

Catching a refrigerant breach early prevents long-term mechanical damage. Look out for these telltale symptoms in your home:

• Sudden Spikes in Electric Bills: As refrigerant drops, the AC runs longer cycles or runs constantly without reaching the thermostat setpoint, consuming excess electricity.

• Ice Accumulation and Line Set Frost: Ice forming on the copper refrigerant lines near the outdoor unit or coating the indoor evaporator coil indicates low pressure and freezing temperatures.

• Drop in System Subcooling and Superheat Performance: Specialized pressure-temperature readings taken by a technician show abnormal subcooling and superheat numbers, indicating fluid loss.

• Indoor Humidity Spikes: Air conditioners remove humidity while cooling. When refrigerant is low, the coil cannot reach the cold temperatures necessary to condense water vapor out of the air, leaving your home sticky and uncomfortable.

• Hissing or Bubbling Sounds: A distinct hissing sound near the indoor or outdoor unit indicates high-pressure refrigerant gas escaping through a tiny puncture, while a bubbling sound suggests a leak combined with escaping compressor lubricant oil.

Professional Detection and Step-by-Step Leak Repair Process

Finding and fixing a refrigerant breach requires specialized diagnostic instruments, EPA-compliant procedures, and skilled hands-on mechanical repair work. Simply adding more refrigerant without locating and repairing the leak is improper, illegal under federal regulations, and harmful to your equipment. Addressing a leak is one of the Most Common AC Repairs and What Causes Them.

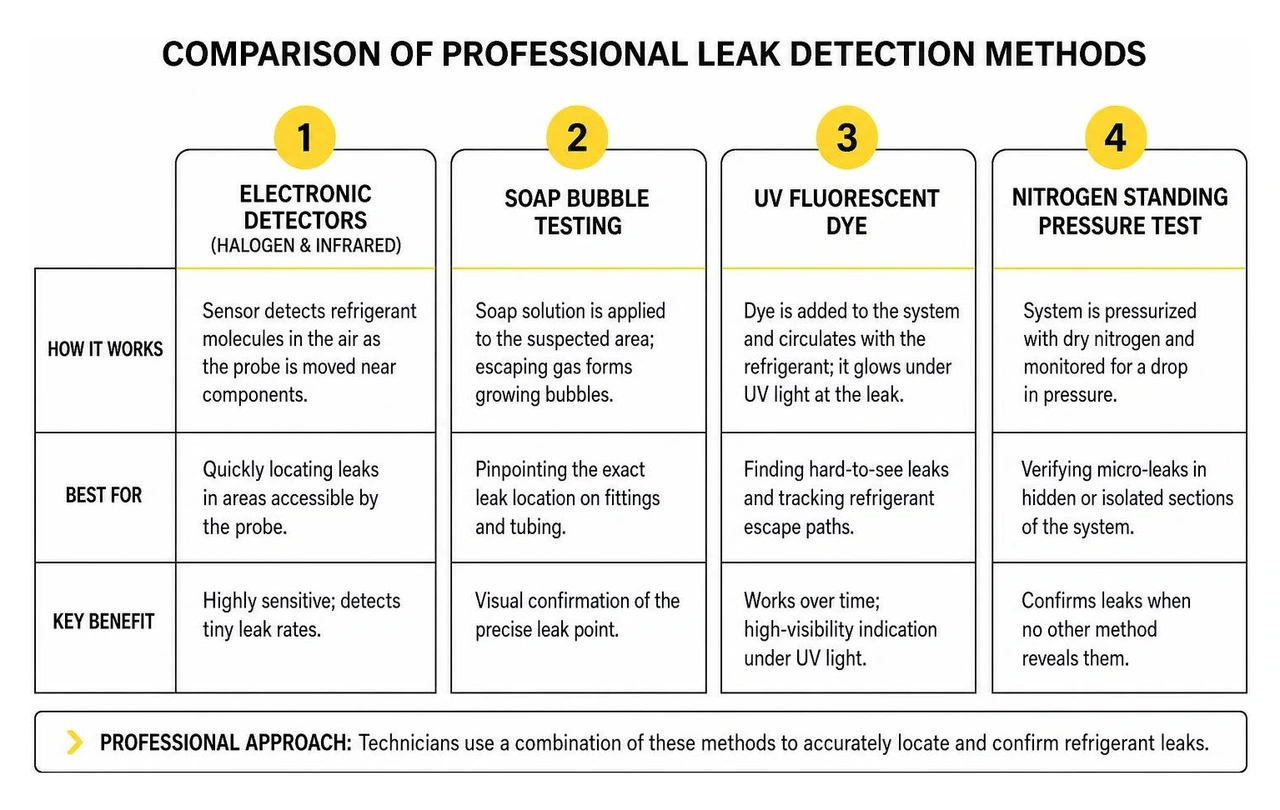

Diagnostic Techniques Used by Professionals

Technicians rely on a combination of precision tools to pinpoint the exact physical location of a breach:

• Electronic Halogen and Infrared Detectors: Often called "sniffers," these portable handheld devices draw air across a sensor capable of detecting chemical refrigerant molecules in concentrations down to tiny fractions of an ounce per year. Infrared detectors are particularly accurate because background chemical fumes do not trigger false alarms.

• Soap Bubble Testing: Once an electronic detector narrows the leak to a specific area, technicians apply a non-corrosive soap solution to the copper tubing or fitting. Escaping gas forms visible, growing bubbles, confirming the precise pinhole location.

• Ultraviolet (UV) Fluorescent Dye: A harmless fluorescent dye is injected into the refrigerant circuit alongside compressor oil. The system runs to circulate the dye, which leaks out at the puncture point and glows brightly under ultraviolet light.

• Nitrogen Standing Pressure Test: When micro-leaks are deeply hidden, technicians recover any remaining refrigerant, isolate sections of the copper tubing, and pressurize the system with dry nitrogen gas. A drop in static pressure over a 30-minute monitoring window confirms an active leak.

Mechanical Repair, Vacuum Evacuation, and System Recharging

Once the breach is precisely located, we execute a thorough mechanical repair workflow to restore original system integrity:

• Refrigerant Recovery: Using an EPA-approved recovery machine and certified cylinder, any remaining refrigerant is safely removed from the system according to federal environmental law.

• Physical Repair or Component Replacement: Loose flare connections are re-seated and tightened. Faulty Schrader valve cores or service valve caps with worn rubber seals are replaced. If the leak is on copper line sets or accessible elbows, surfaces are wire-brushed clean and permanently sealed using silver-solder torch brazing while flowing dry nitrogen gas through the tubing. Flowing nitrogen prevents internal copper oxidation (black soot) from clogging thermostatic expansion valves (TXVs). If extensive formicary corrosion has degraded an entire evaporator or condenser coil, the complete component is replaced.

• Filter Drier Replacement: The system's liquid line filter drier is replaced whenever the sealed refrigeration circuit is opened, ensuring any internal moisture or contaminants are trapped.

• Deep Vacuum Evacuation: A high-vacuum pump is connected to pull the entire system down to a minimum target of 500 microns. Pulling a deep vacuum lowers the boiling point of water inside the lines, causing any residual moisture to boil away and vent out as steam. A vacuum decay test ensures the system is completely sealed and dry.

• Liquid Refrigerant Charging by Weight: Finally, fresh refrigerant is weighed into the system using a digital scale to match the exact factory charge specified on the outdoor unit's nameplate, followed by superheat and subcooling verification.

Evaluating Repair vs. Replacement and Environmental Regulations

When facing a refrigerant leak, homeowners must weigh the practical merits of repairing the current equipment versus installing a modern, energy-efficient system.

Factors Determining System Replacement over Repair

Several key variables help determine whether repairing the leak or replacing the complete air conditioning system is the best investment:

• The 50 Percent Rule: If diagnosing, repairing, and recharging a severely leaking unit approaches 50 percent of the value of a brand-new system, full replacement is generally the smarter choice.

• Equipment Age and History: Systems operating for 10 to 15 years or longer have experienced significant thermal fatigue. Repairing one pinhole leak on an old coil often leads to a game of "whack-a-mole," where new leaks emerge shortly after in adjacent fragile tubing.

• Compressor Health: Operating a system with low refrigerant starves the compressor of the oil required for lubrication, causing severe mechanical wear or motor burnout. If the compressor has suffered damage, replacing the complete system avoids continual repairs on a compromised unit.

• Refrigerant Phaseouts and Transitions: Older systems built before 2010 run on R-22 (Freon), which has been completely phased out under environmental regulations. Systems built between 2010 and 2024 utilize R-410A, which is also undergoing regulatory production reductions. Modern units installed today utilize lower-GWP refrigerants like R-454B. You can learn more about these chemical shifts in our detailed comparison of R410A vs R454B Refrigerant: What You Need to Know.

Legal EPA Regulations and Health Dangers

Refrigerants are strictly regulated chemical compounds governed by Section 608 of the federal Clean Air Act. It is illegal to knowingly vent refrigerants into the open air during service or maintenance. Technicians handling these chemical compounds must hold valid EPA certifications, use approved recovery equipment, and follow proper disposal guidelines.

Beyond regulatory mandates, leaking refrigerant presents genuine safety risks:

• Indoor Air Quality and VOCs: Escaping refrigerant releases volatile chemicals into indoor living spaces, which can irritate eyes, noses, and lungs.

• Inhalation and Asphyxiation Risks: Refrigerants are denser than surrounding air and settle in low-lying areas. In unventilated spaces, large releases displace oxygen, posing heavy health hazards to young children and family pets.

• Environmental Harm: Older refrigerants contribute to stratospheric ozone layer depletion, while standard synthetic gases carry high global warming potential (GWP) when released into the atmosphere.

Preventive Maintenance to Protect Your AC System

The most effective way to avoid refrigerant leak headaches is through routine, proactive maintenance. Simple maintenance steps preserve line set integrity, optimize thermal transfer, and eliminate the root causes of corrosion and vibration friction:

• Schedule Seasonal Tune-Ups: Professional maintenance inspections in early spring allow technicians to clean coils, inspect flare fittings, check operating pressures, and catch microscopic micro-leaks long before they lead to unexpected mid-summer breakdowns.

• Replace Air Filters Every 30 to 90 Days: Clean filters prevent restricted airflow across the indoor evaporator coil. Adequate airflow maintains warm coil temperatures, preventing frozen coils and reducing mechanical stress on copper joints.

• Keep Outdoor Units Clean and Protected: Maintain a two-foot clearance zone around your outdoor condensing unit. Remove grass clippings, leaves, and dirt from condenser fins. Keep pets away from the outdoor cabinet to prevent corrosive urine damage to condenser coils.

• Inspect Line Insulation and Dampening Pads: Ensure outdoor refrigerant copper lines remain wrapped in rubber insulation, and verify that the outdoor condenser unit rests evenly on vibration-dampening pads to prevent friction rubbing against concrete.

If you are experiencing cooling issues in the Greater Birmingham region, you can rely on prompt, professional assistance by scheduling Air Conditioning Repair in Birmingham, AL.

Frequently Asked Questions About Refrigerant Leaks

Can a refrigerant leak be fixed without replacing the entire unit?

Yes, many refrigerant leaks can be repaired without replacing the complete HVAC unit. If the leak is isolated to an accessible copper line set, a loose flare fitting, or a worn Schrader valve core, a technician can braze or tighten the connection, pull a deep vacuum, and recharge the system. However, if widespread formicary corrosion has weakened an entire indoor evaporator coil on an older unit, replacing the damaged coil component or upgrading the full system is usually necessary.

Is it safe to run an AC system when it has a refrigerant leak?

No, running an air conditioner with an active refrigerant leak is unsafe for the equipment. Low refrigerant pressure causes the indoor coil to freeze over and starves the compressor motor of cooling and lubrication oil, leading to motor failure or total compressor burnout. Furthermore, leaking refrigerant releases chemical vapors into your living areas. If you suspect a leak, turn off the system at your thermostat immediately.

Can refrigerant be topped off without repairing the breach?

Simply "topping off" or adding refrigerant without fixing the physical leak trap is improper, illegal under EPA rules, and harmful to your system. Because an air conditioner is a sealed loop, added refrigerant will continue to escape into the environment, risking compressor failure while repeatedly failing to deliver cooling comfort. A permanent mechanical repair must always precede system evacuation and recharging.

Understanding how refrigerant leaks happen and how they are repaired gives you the knowledge needed to protect your home's comfort, health, and equipment investment. From pinhole corrosion caused by indoor VOCs to line vibration and loose service valves, identifying leak symptoms early—such as frozen coils, elevated humidity, and hissing sounds—saves your compressor from damage.

When a breach occurs, professional diagnosis, silver-solder brazing, proper vacuum evacuation, and accurate weight-based charging ensure your cooling system operates safely and reliably for years to come. Routine seasonal maintenance remains your best defense against unexpected refrigerant issues.

At Air Experts, we bring reliable family-owned expertise, transparent service, and fast response times to homeowners across Birmingham, Chelsea, Hoover, Pelham, Trussville, Sylacauga, AL, and surrounding communities. With our commitment to "No Upselling. No catch. Just Honest, Quality Service," you can trust our team to keep your home cool and safe all summer long. Contact us today to schedule your annual maintenance or explore our comprehensive Air Conditioning Services.
