How to Boost AC Efficiency with These 3 Easy Filter Changes

How the Right Filter Improves Your AC Efficiency (And Prevents Costly Breakdowns)

Understanding how the right filter improves your AC efficiency starts with one key fact: a clean, correctly rated filter does not boost your AC beyond its factory rating — but the wrong filter, or a neglected one, can silently drag your system's performance down by 5 to 15%, drive up your energy bills, and shorten the life of your equipment.

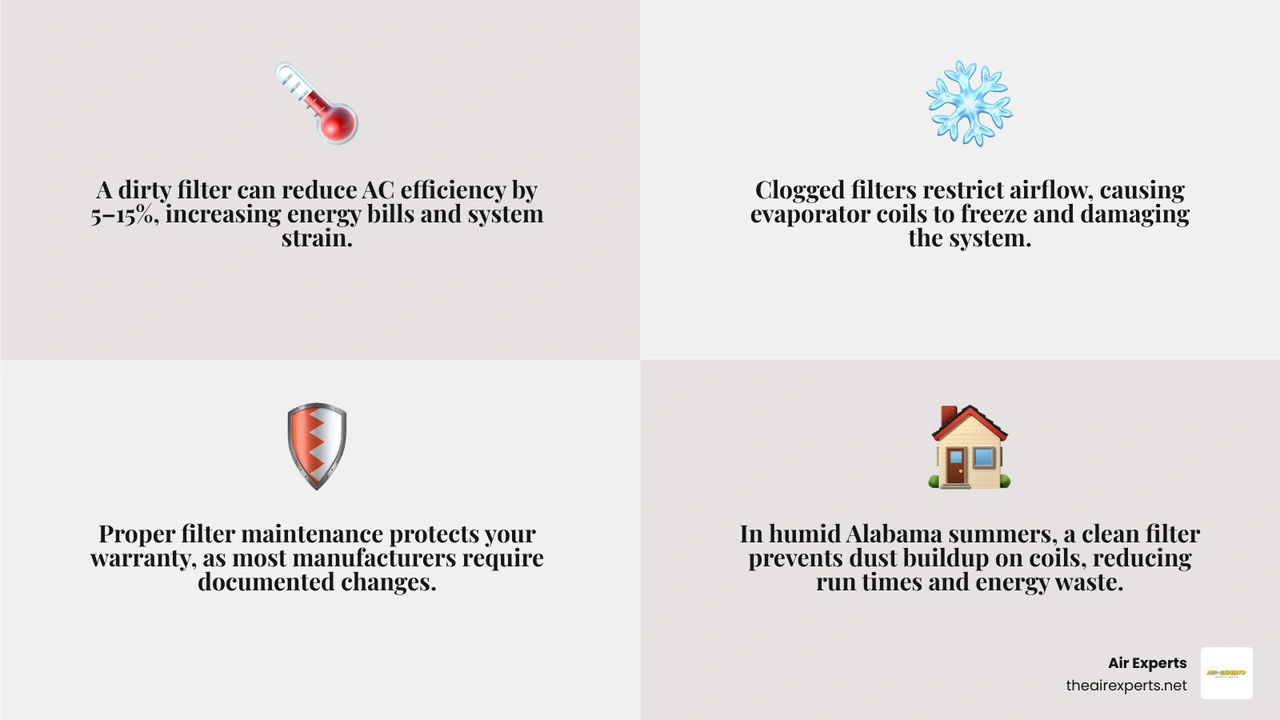

Here is a quick summary of how the right filter protects your system:

• Keeps the evaporator coil clean so it can absorb heat efficiently without dirt acting as insulation
• Maintains proper airflow so the blower motor does not have to work harder than designed
• Prevents frozen coils caused by restricted airflow dropping below manufacturer specs
• Protects your warranty since most HVAC manufacturers require documented filter maintenance
• Reduces energy waste — a clogged or wrong-sized filter can force your system to consume significantly more energy every month

Think of it this way: your AC continuously recirculates all the air inside your home through that single filter. Every hour it runs, every particle that slips past an overloaded filter ends up on your evaporator coil. Over time, that layer of dust and debris acts like a blanket around the coil, blocking the heat transfer your system depends on. The system then runs longer to do the same job — and your energy bill climbs.

For homeowners in the Greater Birmingham area, where summer heat and humidity push AC systems to run thousands of hours per year, the stakes are even higher. Getting the filter choice right is one of the simplest and most impactful things you can do for your home's comfort and your system's health.

I'm Steve Etress, and in this guide I'll walk you through exactly which filter changes make the biggest difference — and why they matter so much in Alabama's climate.

How the right filter improves your ac efficiency glossary:

• how dirty air filters destroy your ac performance
• how dirty filters cause frozen evaporator coils

Understanding How the Right Filter Improves Your AC Efficiency

To understand how the right filter improves your AC efficiency, we have to bust a very common myth: a clean air filter does not actually upgrade your air conditioner's baseline engineering. It won't magically turn a 14 SEER2 system into a 20 SEER2 powerhouse.

Instead, a clean, correctly fitted filter acts as a preventative shield. It maintains your system's baseline efficiency and prevents a severe, costly decrease in performance. When a filter becomes clogged with dirt, pet hair, and dust, it acts like a giant thumb over the end of a garden hose—except in this case, it's choking off the air your system needs to breathe.

This restriction forces your blower motor to run longer and work much harder to pull air through the system. According to the Department of Energy, a clogged or undersized filter can increase your home energy bills by 5% to 15%. If you've noticed your monthly utility bills creeping up during the peak of summer in Alabaster, AL or Hoover, AL, a dirty filter is often the prime suspect.

Furthermore, when the air filter is neglected, dust and debris bypass the filter entirely and settle deep inside the air handler. To learn more about how this process slowly chokes your system, check out our guide on how dirty air filters destroy your ac performance.

How the Right Filter Improves Your AC Efficiency by Protecting the Evaporator Coil

The evaporator coil is the heart of your indoor AC unit. Its job is to let cold liquid refrigerant absorb the heat from your home's air as it passes over the copper tubing.

When you use a cheap, poorly fitting filter—or leave a dirty one in place for too long—dust, skin flakes, and pet dander will bypass the filter frame. This debris cakes onto the moist surface of the evaporator coil. This accumulation of dirt acts exactly like a layer of thermal insulation.

Instead of the warm indoor air easily transferring its heat to the cold copper coils, the dirt blocks the heat exchange. Because the system cannot absorb heat efficiently, it has to run much longer cycles to cool your home to the temperature set on your thermostat.

This insulating effect does more than just waste electricity. Because the cold refrigerant in the coil isn't absorbing enough heat, the temperature of the coil drops below freezing. Moisture in the air condenses on the coil and quickly turns to ice, leading to a completely frozen system. To understand this chain reaction in detail, read our article on how dirty filters cause frozen evaporator coils.

Over time, this extra strain dramatically shortens your system's lifespan and can lead to a premature compressor failure. To make matters worse, most major HVAC manufacturers require documented proof of regular filter replacements to honor their warranty coverage. A single season of neglect could void your warranty, leaving you holding the bill for an expensive repair.

The Science of Airflow: MERV Ratings and Static Pressure

To choose the right filter, you need to understand the relationship between filtration power, airflow, and static pressure.

Filters are rated using the MERV (Minimum Efficiency Reporting Value) scale, which ranges from 1 to 16 for residential systems. The higher the MERV rating, the smaller the particles the filter can capture. However, tighter filtration naturally creates more resistance to airflow. This resistance is measured as a "pressure drop" across the filter, which directly impacts your system's static pressure.

If the static pressure in your duct system rises too high because of a highly restrictive filter, your blower motor must consume significantly more energy to push air through the home.

MERV Ratings vs. Pressure Drop and Efficiency

Field research shows that high-arrestance filters (like MERV 13 or higher), while excellent for indoor air quality, can cause a sharp drop in airflow if the system is not designed to handle them.

How much does this pressure drop affect your wallet? A potential 10.8% increase in sensible EER (Energy Efficiency Ratio) is possible if the mean filter pressure drop is reduced from a restrictive 0.28 in. w.c. to an optimal 0.1 in. w.c. (70 Pa to 25 Pa). By selecting a filter that balances filtration with low resistance, you can keep your energy bills low while still protecting your indoor air.

3 Easy Filter Changes to Protect Your System and Lower Bills

Now that you know the science, let's look at three practical, easy changes you can make today to optimize your system's performance.

1. Upgrade from 1-Inch Fiberglass to a Deeper Pleated Media Filter

Standard 1-inch fiberglass filters are often called "rock catchers" in the HVAC industry because they only stop large debris from entering your system. They do almost nothing to improve indoor air quality and clog very quickly.

If your system's cabinet allows for it, upgrading to a 4-inch or 5-inch deep media filter is a game-changer. Because deep media filters are pleated, they have up to ten times the surface area of a standard 1-inch filter. This extra surface area allows them to capture microscopic allergens without restricting airflow, and they only need to be changed once or twice a year. If you want to make this upgrade, we can install a whole house air filter in Birmingham, AL to accommodate these high-efficiency filters.

2. Match Your MERV Rating to Your Household Needs

Don't just buy the highest MERV rating on the shelf. For most homes in Chelsea, AL and Trussville, AL, a MERV 8 pleated filter offers the perfect sweet spot: it captures common dust and pollen without choking your system's airflow. Only upgrade to a MERV 11 or 12 if you have shedding pets or allergy sufferers, and ensure your system is checked by a professional to confirm it can handle the static pressure.

3. Establish a Strict, Calendar-Based Replacement Schedule

Do not wait for your system to start blowing warm air before checking your filter. Set a monthly phone reminder to inspect your filter. If you use standard 1-inch pleated filters, replace them every 60 days during peak summer use, and every 90 days during milder spring and fall months.

How the Right Filter Improves Your AC Efficiency in Humid Alabama Climates

In the humid subtropical climate of Central Alabama—including cities like Pelham, AL and Pell City, AL—your air conditioner has to work twice as hard. It doesn't just lower the air temperature; it also has to remove massive amounts of moisture from the air.

As explained in our article on how Alabama heat and humidity make your AC work harder, high humidity levels increase the latent heat load on your evaporator coil. This means your system runs longer, wetter cycles.

When high humidity combines with a dirty air filter, several problems arise:

• The wet evaporator coil acts like a magnet, pulling dust right out of the air and turning it into a thick mud on the coil fins.
• The restricted airflow prevents the system from dehumidifying your home effectively, leaving your indoor air feeling sticky and warm.
• This humid environment accelerates wear and tear, directly impacting your AC equipment lifespan.

During our intense summers, we recommend checking your filter every 30 days and replacing standard pleated filters strictly every 60 days to keep your system running optimally.

Optimizing Installation: Filter Racks and Duct Design

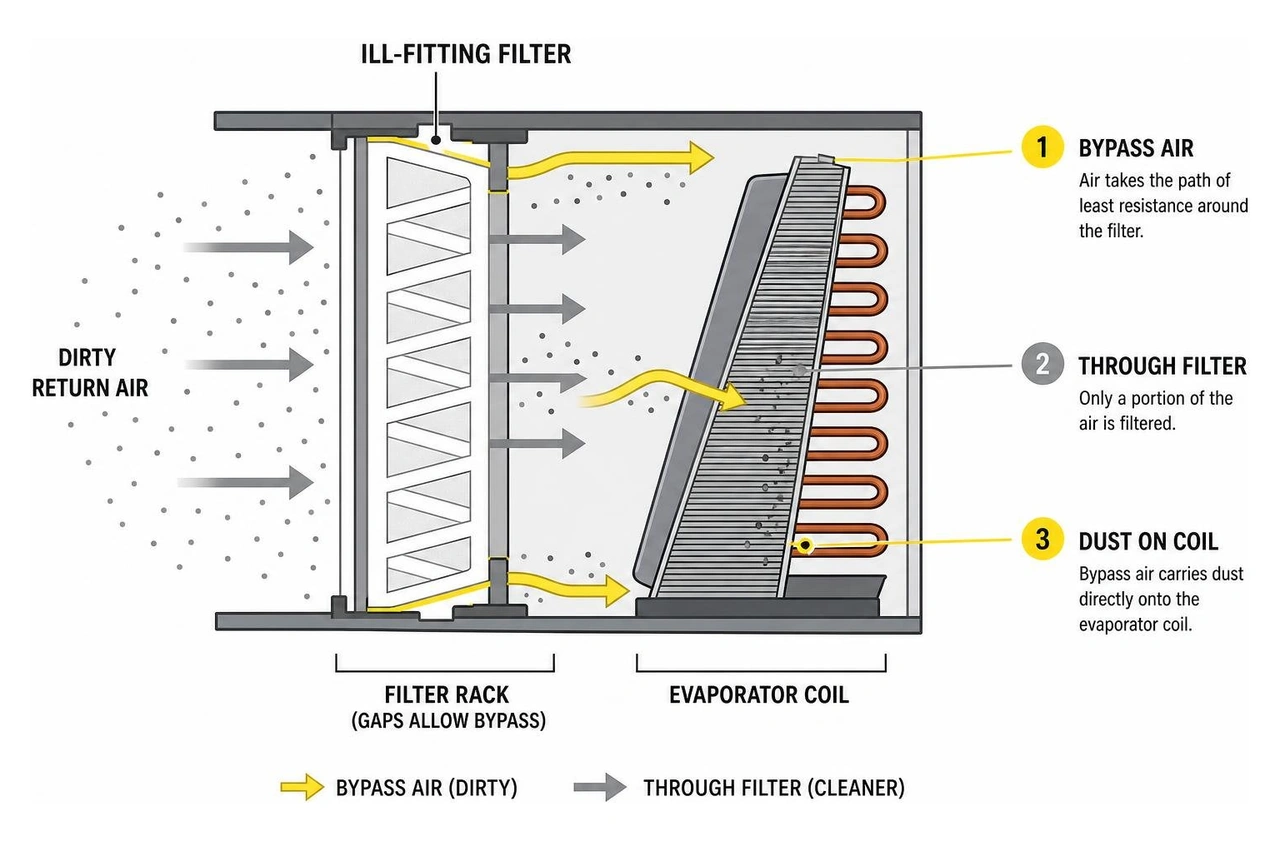

Even the best air filter won't help your efficiency if air can bypass it.

Many homeowners don't realize that standard air filters have "nominal" sizes printed on the box (e.g., 20x20x1), but their actual physical dimensions are usually 0.25 to 0.5 inches smaller. If your filter rack is poorly constructed or the wrong size, air will take the path of least resistance. This "bypass air" carries dust and dander straight past the filter and onto your coils.

Proper installation of your filter rack and your overall ductwork design is critical. If your ducts are undersized or leaking, it can reduce your system's operating efficiency by up to 30%. Regularly scheduling professional duct cleaning and sealing leaks ensures that all the air in your home actually passes through your filter, keeping both your air and your system clean.

Signs Your Filter is Choking Your Airflow and Damaging Your System

How do you know if your air filter is currently hurting your system's efficiency? Keep an eye out for these common warning signs:

• Weak Airflow: If the air coming out of your register vents feels weak or barely moving, your filter is likely choked with dust.
• Whistling or Whining Noises: A high-pitched whistling sound near your return vent usually means your blower motor is struggling to pull air through a restrictive filter.
• Short Cycling: If your AC turns on and off rapidly without actually cooling your home, it may be overheating due to restricted airflow.
• Ice on the Outdoor Unit or Indoor Coil: If you see physical ice forming on the refrigerant lines, turn your system off immediately to prevent compressor damage and check your filter.

If you notice any of these signs, replace the filter immediately. If the problem persists, it's time to schedule a professional AC tune-up in Birmingham, AL to check your system's static pressure and overall health. Regular HVAC maintenance is the best way to catch these issues before they turn into expensive emergency repairs.

Frequently Asked Questions About AC Filters

Does a clean air filter actually increase my AC's efficiency?

No, a clean filter does not increase your system's efficiency beyond its original factory design. Instead, it prevents a severe decrease in efficiency. By keeping the evaporator coil clean and maintaining unrestricted airflow, a clean filter ensures your system doesn't have to run longer, harder cycles to cool your home.

What happens if I use a MERV rating that is too high for my system?

If you install a high-MERV filter (like MERV 13 or higher) in a standard residential system that wasn't designed for it, you will restrict airflow. This increases the static pressure in your ductwork, forces the blower motor to consume more energy, and can cause your evaporator coil to freeze, potentially destroying your compressor.

How often should I change my AC filter during a hot Alabama summer?

During peak summer in Central Alabama, we recommend checking your filter every 30 days. Standard 1-inch pleated filters should be replaced every 45 to 60 days, especially if you have pets or allergy sufferers in the home.

Conclusion

At the end of the day, managing your air filter is the easiest and most cost-effective way to protect your cooling system and keep your energy bills under control. By selecting the correct MERV rating, ensuring a perfect fit in your filter rack, and keeping a consistent replacement schedule, you can prevent major breakdowns and keep your home comfortable all year long.

If you aren't sure which filter is right for your system, or if you suspect a dirty coil is already hurting your system's performance, we are here to help. At Air Experts, our philosophy is simple: "No Upselling. No catch. Just Honest, Quality Service."

Contact us today to schedule your comprehensive AC maintenance in Birmingham, AL and let our family-owned team keep your home cool and efficient.

Ready to optimize your home's comfort? Visit our Air Conditioning Services Page to schedule your professional tune-up today!
