How to Understand Your Old AC Removal and New System Installation

What Happens When Your Old AC Is Removed and a New System Is Installed

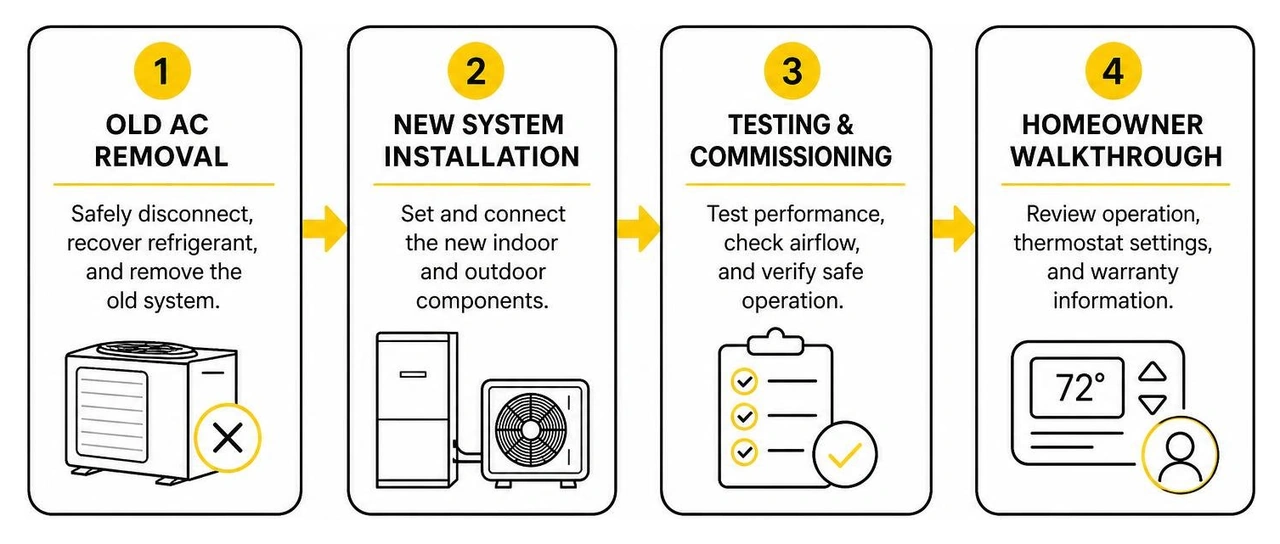

How your old ac is removed and new system installed follows a clear professional process: technicians protect the work area, safely recover refrigerant, disconnect and remove the old equipment, set and connect the new matched system, then test its performance before cooling your home again.

1. Prepare the indoor and outdoor work areas.
2. Recover refrigerant and disconnect power safely.
3. Remove and recycle the old AC equipment.
4. Install the new indoor and outdoor components.
5. Connect, test, charge, and commission the system.
6. Review operation, thermostat settings, and warranty steps.

For homeowners in Birmingham, Chelsea, Pelham, Trussville, Sylacauga, and nearby Alabama communities, AC replacement can feel disruptive, especially during hot weather. The good news is that a standard replacement often takes one workday, with cooling off for only part of that time. The most important work is often the work you cannot see: correct sizing, clean refrigerant lines, secure electrical connections, proper airflow, and careful startup testing. Installation quality matters because mistakes can reduce a new system's efficiency by as much as 30%.

Explore AC installation options or schedule AC replacement service.

I’m Steve Etress, and I’ll walk you through what to expect before, during, and after replacement day.

Schedule professional AC replacement service to restore reliable comfort in your home.

Knowing When to Replace and Choosing the Right AC System

Deciding whether to continue repairing an old air conditioner or upgrade to a modern high-efficiency system is one of the most significant choices you will make for your home’s indoor air quality and summer comfort. In regions like Greater Birmingham, Alabama, where summer heat and humidity push cooling systems to their absolute limits, an aging or failing unit can quickly turn your living space into an oven.

Knowing What to Expect During AC Replacement starts with evaluating your current unit's performance, age, and reliability. Below is a simple guide to help you evaluate whether repairing or replacing makes sense for your home:

Key Signs It Is Time for Replacement

The average lifespan of a standard central air conditioner is 15 to 20 years. While a well-maintained unit can sometimes outlast this window by 3 to 5 years, components gradually degrade over time. If your unit is approaching or past its second decade, it is operating on borrowed time.

Key indicators that signal an immediate need for replacement include:

• Frequent, Unpredictable Breakdowns: If you find yourself calling for emergency service multiple times during a single summer season, major internal components like the compressor or motor are likely failing.
• Phased-Out R-22 Refrigerant: Older systems built before 2010 rely on R-22 (Freon) refrigerant. Production and importation of R-22 have been phased out, making refrigerant leaks prohibitively difficult and impractical to service. Modern systems use eco-friendly refrigerants like R-410A or new A2L alternatives such as R-454B.
• Inability to Manage Indoor Humidity: High ambient humidity across Jefferson and Shelby Counties demands a cooling system that runs long enough to pull moisture from the air. An aging system loses dehumidification capacity, leaving your indoor air feeling sticky and warm.
• Spiking Power Bills: Aging mechanical parts require significantly more electrical energy to produce the same amount of cooling, driving up utility bills during peak summer months.

Manual J Sizing and System Selection

When you decide to move forward with a new cooling system, accurate sizing is the single most important step in the design process. Legacy "rules of thumb"—such as assigning one ton of cooling capacity per 500 square feet—frequently result in oversized units that cool a house too fast without properly pulling out humidity. This results in a clammy, uncomfortable home and subjects the compressor to continuous short-cycling.

We rely on strict Manual J load calculations to determine the exact cooling capacity your home needs. A Manual J calculation evaluates factors including:

• Total home square footage and ceiling height.
• Insulation values (R-values) in your attic, exterior walls, and floor framing.
• Window orientation, square footage, shading, and glass efficiency.
• Local climate conditions across Birmingham and surrounding areas.
• Natural air infiltration rates and ductwork capacity.

Selecting the right replacement system also involves choosing between equipment types and modern efficiency levels. Modern high-efficiency systems consume 20% to 40% less electricity than units built 10 to 15 years ago. Higher SEER2 (Seasonal Energy Efficiency Ratio 2) ratings deliver dramatic energy reductions season after season. Homeowners can choose between traditional split-system air conditioners, dual-fuel hybrid systems, or highly versatile heat pumps. For comprehensive guidance tailored to local climate demands, explore AC Replacement in Birmingham, AL.

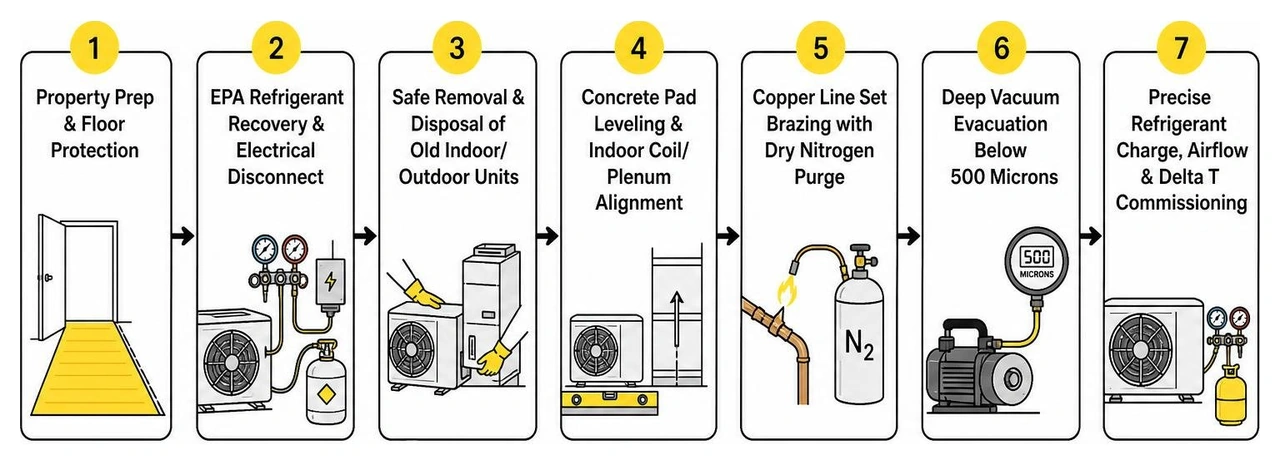

Step-by-Step Process: How Your Old AC Is Removed and New System Installed

Understanding how your old ac is removed and new system installed gives you complete peace of mind on installation day. A seamless installation is not just about unbolting one box and setting down another—it is a meticulous technical process requiring licensed expertise, EPA compliance, and precision craftsmanship.

Understanding How Proper AC Installation Affects Long-Term Performance helps explain why every technical phase must be executed without cutting corners.

Teardown Procedures: How Your Old AC Is Removed and New System Installed Safely

The removal phase begins long before any wrench touches your old equipment. Our priority is protecting your home and adhering to strict federal environmental standards.

1. Property Protection: Technicians lay heavy-duty drop cloths along pathways leading to indoor air handlers, furnaces, and thermostat locations to keep floors completely clean.
2. Electrical Safety Disconnect: Power is safely shut off at the main electrical breaker panel and the outdoor high-voltage disconnect box to protect everyone on site.
3. EPA-Compliant Refrigerant Recovery: Under EPA Section 608 regulations, venting refrigerant into the atmosphere is illegal and environmentally damaging. Technicians connect a specialized recovery machine and approved recovery cylinders to capture all existing refrigerant safely.
4. Physical Removal and Disposal: Once recovered, copper line sets, drain lines, and electrical connections are disconnected. The old outdoor condenser and indoor air handler or evaporator coil are unbolted, extracted carefully, and loaded onto our service truck for responsible recycling.

Technical Connections: How Your Old AC Is Removed and New System Installed Correctly

Once the workspace is clear, the installation of the new matched equipment begins. The technical execution during this stage directly dictates equipment lifespan and operational efficiency.

• Outdoor Pad Leveling and Setting: The outdoor pad is checked for levelness. If necessary, a high-density composite pad is laid down with vibration-absorbing rubber isolation feet to prevent long-term compressor bearing wear and keep operational noise low.
• Indoor Component Alignment: The new indoor coil or air handler is positioned and sealed against your existing air duct system using custom sheet metal plenums, mastic sealant, and foil tape to prevent conditioned air leaks. Up to 30% of conditioned air can leak out through unsealed ductwork, so tight airflow seals are essential.
• Nitrogen-Purged Brazing: When connecting new copper line sets between indoor and outdoor units, technicians flow low-pressure dry nitrogen gas through the copper pipes while applying heat. This prevents internal oxidation and black soot (cupric oxide scale) from forming inside the pipe, protecting the compressor and thermal expansion valves from premature failure.
• Deep Vacuum Evacuation Below 500 Microns: Moisture is the absolute enemy of a refrigeration circuit. Even a microscopic drop of moisture reacting with refrigerant oil forms corrosive acid that ruins internal compressor windings. Technicians connect a vacuum pump and digital micron gauge, evacuating the system down below 500 microns absolute pressure to ensure the line set is completely clean, dry, and leak-free.

System Testing and Commissioning

Once lines are evacuated and verified leak-free, the factory-sealed refrigerant charge is released, or fresh refrigerant is added to match the precise line set length. However, installation is far from complete until full commissioning takes place.

Commissioning involves a complete operational check of all mechanical, electrical, and airflow parameters:

• Electrical Metrics: Measuring voltage, starting amps, and running amps to confirm all values match electrical panel breaker limits and manufacturer specifications.
• Refrigerant Subcooling and Superheat: Verifying subcooling and superheat levels with digital manifold gauges to guarantee the precise cooling charge.
• Temperature Split (Delta T): Measuring the temperature split across indoor return and supply vents. A properly operating system shows a 15°F to 20°F difference between air entering return registers and cold air discharging from supply vents.
• Static Pressure and Airflow: Checking duct static pressure to make sure air flows freely across the blower wheel without restricting system breathability.
• Homeowner Walkthrough: Once testing is complete, our team walks you through the new setup, explains thermostat controls, demonstrates filter change procedures, and reviews emergency shut-off switches.

How to Prepare Your Home and Manage Installation Disruption

A smooth replacement day depends on clear coordination between you and our service crew. Knowing How to Prepare Your Home for AC Installation helps minimize installation stress and keeps our installation team working efficiently from arrival to final walkthrough.

Pre-Installation Preparation Checklist

Taking a few simple preparation steps before technicians arrive speeds up the job and protects your personal belongings:

• Clear Indoor Working Spaces: Move furniture, box containers, or stored items away from the indoor air handler, furnace closet, or attic access hatch to allow unobstructed workspace.
• Clear Outdoor Access: Trim back bushes, tree branches, and ground cover to maintain at least 3 feet of clear space around the outdoor condenser pad. Move patio furniture, outdoor toys, and gardening tools away from pathways.
• Secure Pets: Keep dogs and cats in a quiet, closed room or designated area away from doors, equipment entry points, and open work areas.
• Ensure Breaker Access: Keep the path to your main electrical panel clear so technicians can access high-voltage breakers quickly and safely.
• Be Home for Key Walkthroughs: Plan for an adult decision-maker to be home at the start of the project to review installation plans and at the end of the day for the system review.

Managing Cooling Downtime, Noise, and Dust

It is helpful to plan ahead for temporary disruption during installation day:

• Cooling Downtime: Your air conditioner will be powered down while equipment is removed and swapped. To keep your home cool, close blinds, drapes, and windows early in the morning to retain cold air. Avoid using heat-generating appliances like ovens, stoves, or clothes dryers while cooling is off.
• Noise Levels: Expect moderate noise during the removal of old metal panels, sheet metal fabrication, power tool use, vacuum pump operation, and initial equipment startup.
• Dust Control: While technicians protect floor surfaces with drop cloths and clean up after fabrication work, minor dust can settle around attic hatches or mechanical closets. Keeping interior doors near work areas closed helps keep dust contained.

Frequently Asked Questions About AC Installation

For comprehensive answers about equipment options, visit our dedicated AC Installation Services page. Below are direct answers to common homeowner questions regarding replacement timelines, furnace matching, and warranty activation.

How long does a typical AC replacement take?

A standard, straightforward residential AC replacement takes 4 to 8 hours to complete—allowing us to complete most single-system swaps in a single day.

If your installation requires custom sheet metal duct modifications, structural framing updates, or electrical service panel upgrades, the process may extend into 1 to 2 days. Complete HVAC overhauls that replace both heating and cooling equipment alongside full ductwork updates typically run 2 to 3 days.

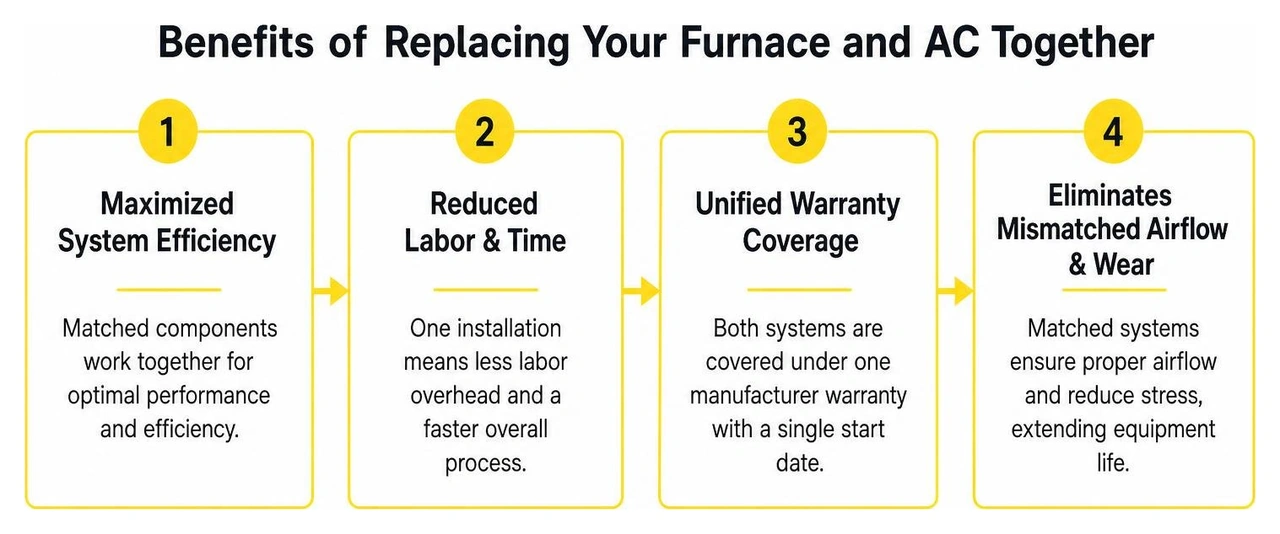

Should I replace my furnace at the same time as my AC?

If your existing furnace is over 12 to 15 years old, replacing it at the same time as your air conditioner is highly recommended.

Modern air conditioners rely on the indoor furnace blower motor to circulate air throughout your home. Combining both installs ensures matched equipment, streamlines combined labor, maximizes SEER2 energy ratings, and aligns warranty terms under a single installation date.

What warranty coverage should I expect for a new system?

New heating and cooling equipment features robust warranty coverage, typically including a 5-to-10-year functional parts warranty, a 10-year compressor warranty, and a 1-to-3-year labor guarantee from your installation contractor.

Most major manufacturers strictly require homeowners to register their new equipment online within 60 days of installation. Failing to register within this window can drop your parts warranty coverage from 10 years down to 5 years. Our team assists you with warranty details so your investment remains fully protected.

Conclusion

Understanding how your old ac is removed and new system installed takes the mystery out of upgrading your home's air conditioner. From precision Manual J load sizing and EPA-compliant teardowns to nitrogen-purged brazing, vacuum evacuation below 500 microns, and comprehensive commissioning, quality craftsmanship makes all the difference in achieving long-term energy efficiency and lower power bills.

As a family-owned HVAC company built on honest service, Air Experts believes in total transparency every step of the way. We never upsell equipment you don't need, and we stand behind every installation with prompt service, 24/7 emergency response, and dedicated indoor air quality solutions.

If your aging air conditioner is struggling to keep up with the summer heat, trust our experienced team for seamless AC Installation in Birmingham, AL. Contact us today to schedule professional AC replacement services and enjoy guaranteed comfort all season long!
