7 Things Every Technician Should Check During a Spring AC Visit

What Your Technician Should Check During a Spring AC Visit

Knowing what your technician should check during a spring ac visit can mean the difference between a cool, worry-free summer and an emergency breakdown on the hottest day of the year. Here is a quick-reference summary of the 7 key things a qualified technician should inspect every spring:

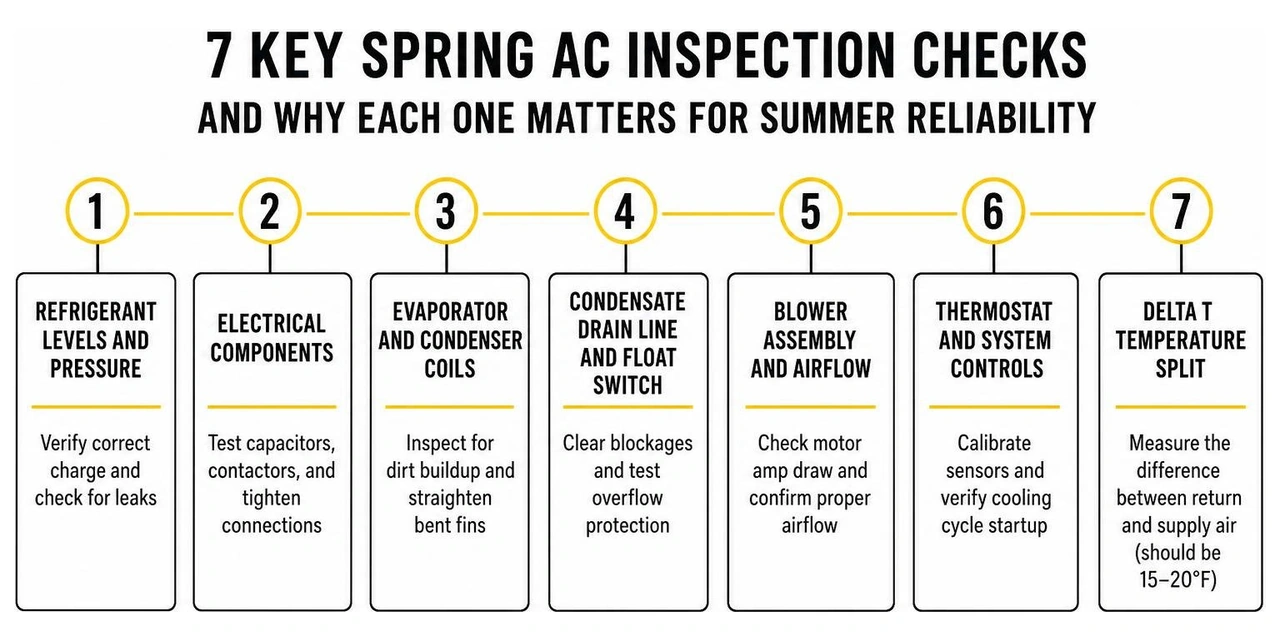

1. Refrigerant levels and pressure - Verify correct charge and check for leaks
2. Electrical components - Test capacitors, contactors, and tighten connections
3. Evaporator and condenser coils - Inspect for dirt buildup and straighten bent fins
4. Condensate drain line and float switch - Clear blockages and test overflow protection
5. Blower assembly and airflow - Check motor amp draw and confirm proper airflow
6. Thermostat and system controls - Calibrate sensors and verify cooling cycle startup
7. Delta T temperature split - Measure the difference between return and supply air (should be 15–20°F)

It happens every year across the Greater Birmingham area. A homeowner flips on the AC for the first time since fall, and nothing — or worse, warm air — comes out. The system sat dormant all winter, and small problems that could have been caught in March turned into a full emergency in July. By the time a technician is available, the heat is already unbearable and the repair bill reflects the urgency.

A spring tune-up is not just routine maintenance. It is the single most effective way to prevent your cooling system from failing during peak summer demand, when service windows are tight and every problem feels urgent. Airflow issues alone can cut system efficiency by up to 15 percent, and dirty coils can push that number past 30 percent — all of which shows up on your energy bill long before the system gives out entirely.

I'm Steve Etress, and in this guide I'll walk you through exactly what a thorough spring AC inspection looks like so you know what to expect and how to make sure you're getting honest, complete service.

What Your Technician Should Check During a Spring AC Visit: The 7 Crucial System Checks

When a professional HVAC technician steps onto your property for a spring startup, they are performing a comprehensive physical and electrical audit of your cooling equipment. Central air conditioners are complex electromechanical systems. Operating an AC during an Alabama summer puts thousands of hours of strain on motors, electronics, and refrigerant loops—in fact, running an AC continuously throughout a hot season accumulates operating hours comparable to driving a vehicle non-stop for over 80 days!

A proper preventive tune-up optimizes cooling performance, enhances indoor air quality, and dramatically extends equipment longevity. To ensure your system receives complete care, explore our specialized AC Tune-Up Services in Birmingham, AL.

Here is a detailed breakdown of the seven essential components and diagnostics every technician must evaluate during a spring visit.

1. Refrigerant Levels and Pressure Diagnostics

Refrigerant is the lifeblood of your air conditioner. It absorbs heat from inside your home and transfers it outdoors through a continuous cycle of evaporation and condensation. During a spring tune-up, your technician must attach digital manifold gauges to assess operating pressures, suction line temperatures, and liquid line subcooling or superheat.

Unlike motor oil in a vehicle, refrigerant is operated in a closed loop and is never "consumed" or burned off during normal operation. If your system is low on refrigerant, there is a leak.

• Refrigerant Charge Evaluation: A technician verifies whether the charge matches exact manufacturer specifications. Incorrect refrigerant charge—whether overcharged or undercharged—severely reduces cooling capacity and stresses the compressor.
• Leak Detection: If operating pressures are low, a technician uses electronic leak detectors or bubble solutions along copper suction lines, thermal expansion valves (TXV), and solder joints to identify active micro-leaks.
• Environmental & Industry Compliance: Handling refrigerant requires EPA Section 608 certification. As the industry transitions through refrigerant regulations, ensuring your system's refrigerant loop is tight and leak-free is essential for legal compliance and optimal cooling efficiency.

2. Electrical Connections, Capacitors, and Contactors

Electrical component failure is the single leading cause of mid-summer emergency service calls. Winter idling allows moisture to collect on contacts, while summer heat creates high electrical resistance.

During the spring visit, our technicians open the high-voltage electrical cabinet (with power safely disconnected) to inspect and test every critical connection:

• Microfarad Testing: Technicians use a multimeter to measure the microfarad (µF) output of your system's start and run capacitors. Capacitors act like temporary batteries that give motors the extra torque needed to start and run. Capacitors that test more than 10% below their nameplate rating are prime candidates to fail completely on the first 90°F afternoon. Catching a weak capacitor in spring prevents sudden compressor shutdown.
• Contactor Pitting & Erosion: The contactor is an electromechanical switch that engages high-voltage power when your thermostat calls for cooling. Over time, electrical arcing causes pitting and carbon buildup on the contact points. If contacts are pitted or eroded by more than 50%, the contactor can weld shut or fail to send voltage, causing motor failure.
• Voltage and Wire Inspections: Technicians tighten all line-voltage and low-voltage electrical terminals, check for frayed wiring, and inspect safety switches. Loose connections cause high electrical resistance, increased amp draw, and potential electrical hazards.

3. Evaporator and Condenser Coil Inspection

Heat transfer relies entirely on clean metal surfaces. Your system features two main coils: the indoor evaporator coil (which absorbs heat and humidity from indoor air) and the outdoor condenser coil (which releases that heat into the outside atmosphere).

• Condenser Coil Cleanliness: Located outdoors, condenser coils gather dirt, grass clippings, pollen, cottonwood seeds, and dried mud over winter. Dirty coils act like an insulating blanket, trapping heat inside the system. Research indicates that dirty coils can degrade system efficiency by 30% or more, forcing the compressor to run longer and work significantly harder.
• Fin Straightening: Condenser coils feature delicate aluminum fins (often 14 to 16 fins per inch). If lawn mowers, hail, or pressure washers bend these fins, airflow is blocked. Technicians use fin combs to align bent fins, restoring full surface airflow. A fin surface area reduction of just 15% noticeably degrades total cooling capacity.
• Evaporator Coil Inspection: Inside the air handler, the evaporator coil must be checked for biological growth, dust accumulation, and frost patterns. Clean evaporator coils ensure proper thermal absorption and effective household humidity control.

4. Condensate Drain Line and Safety Float Switches

As your AC cools your home, it removes large amounts of moisture from the air. In humid climates like Hoover, Pelham, and Vestavia Hills, a central air conditioner can produce between 5 and 20 gallons of water condensate every single day!

• Algae and Mold Clearouts: Moisture dripping off the evaporator coil collects in a primary drain pan and drains out through a PVC pipe. Over winter, stagnant water, dust, and algae spores form thick clogs inside the line. A technician must clear the condensate drain line using suction, nitrogen flushes, or white vinegar treatments to ensure unimpeded flow.
• Secondary Drain Pan & Emergency Float Switches: If the primary drain clogs, water backs up. A professional technician tests the inline safety float switch (or drain pan float switch). When functioning properly, this switch automatically shuts off power to the AC before water can overflow the pan, preventing ceiling collapse, drywall damage, and flooring ruin.

5. Blower Assembly and Airflow Calibration

System airflow is just as critical as refrigerant charge. Even a perfectly charged AC cannot cool your home if air cannot move freely across the heat exchangers. Learn how maintaining proper airflow through Spring AC Maintenance to Prevent Summer Failures keeps your equipment running smoothly.

• Blower Motor Amp Draw: The technician measures the operating current (amperage) of the indoor blower motor using a clamp meter and compares it to the motor's full-load amp (FLA) rating. High amp draw signals failing motor bearings, a clogged wheel, or extreme static pressure resistance.
• Blower Wheel Inspection: Dust buildup on curved blower blades reduces air velocity. Cleaning the blower wheel restores original cubic feet per minute (CFM) output.
• Static Pressure & Filter Bypass Check: High static pressure strains the blower motor and cuts efficiency by up to 15 percent. Technicians verify that air filters fit snugly without bypass gaps and that the filter material isn't causing excessive airflow resistance.

6. Thermostat Calibration and System Controls

Your thermostat is the command center of your HVAC system. A technician must verify that the thermostat correctly communicates with the indoor air handler and outdoor condensing unit.

• Sensor Accuracy: Technicians compare your thermostat's ambient temperature reading against a calibrated digital psychrometer. A sensor off by even 2 or 3 degrees causes short-cycling or over-cooling, leading to wasted energy.
• Cooling Cycle Startup Controls: The technician observes a complete startup cycle to ensure time-delay relays operate properly, preventing dangerous compressor short-cycling after power flickers.
• Smart Thermostat Integration: For homeowners utilizing smart thermostats in areas like Trussville or Mountain Brook, technicians check Wi-Fi signal stability, wiring backplates, and seasonal programming parameters. Proper thermostat programming alone saves about 10% annually on heating and cooling energy expenses.

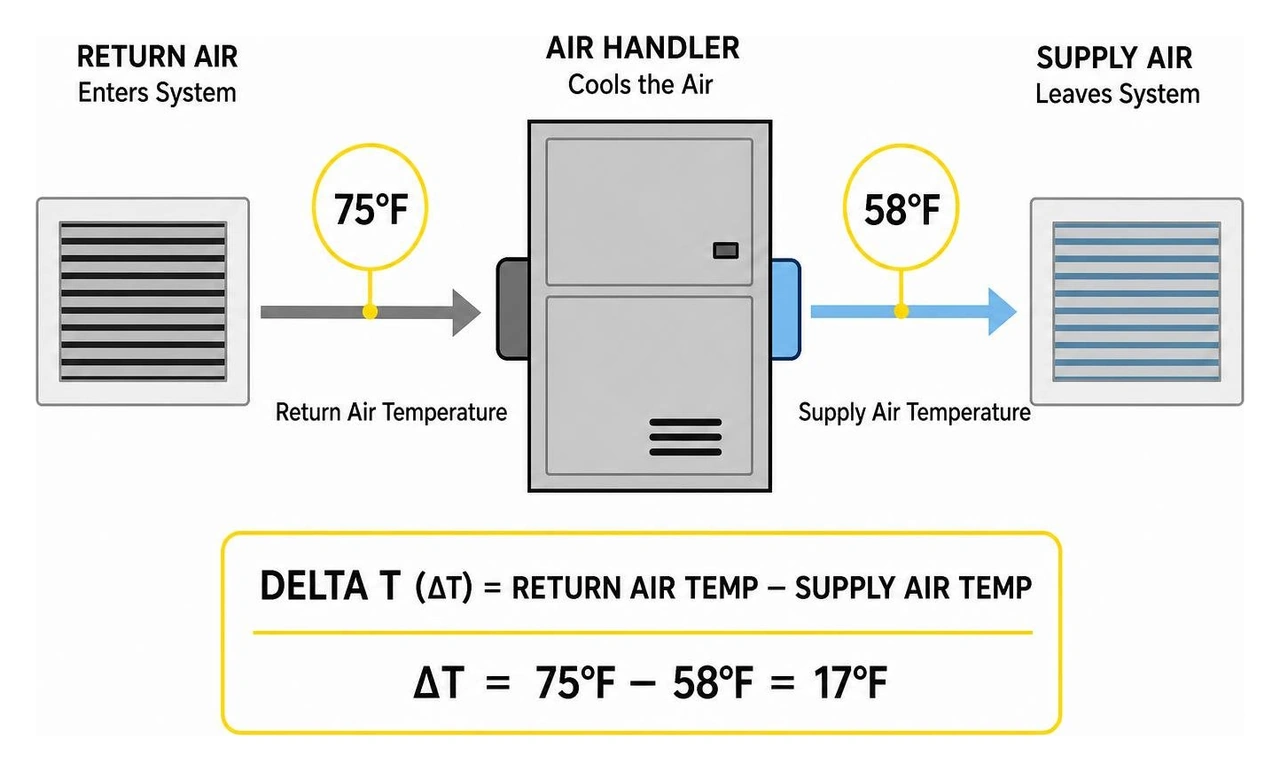

7. Delta T Temperature Split Measurement

One of the definitive performance metrics measured during a spring visit is the temperature split, known technically as "Delta T" ($\Delta T$).

Delta T is the temperature drop between the return air entering your HVAC unit and the cooled supply air blowing out of your supply registers:

$$\Delta T = \text{Return Air Temperature} - \text{Supply Air Temperature}$$

• Target Range: A healthy, balanced residential central AC system should produce a temperature difference of 15°F to 20°F (and up to 22°F under low humidity conditions).
• What Low Delta T Means (<15°F): If the supply air is only 8°F or 10°F cooler than the return air, the system is not cooling efficiently. Common causes include low refrigerant levels, a failing compressor, restricted metering devices, or duct leaks pulling hot attic air into the return stream.
• What High Delta T Means (>22°F): If the temperature drop exceeds 22°F, air is moving too slowly across the evaporator coil. This is usually caused by severely clogged air filters, a dirty blower wheel, undersized ductwork, or blocked supply registers. Left uncorrected, high Delta T leads to evaporator coil icing and compressor damage.

Discover more details on temperature measurements in our guide to AC Tune-Up Checklist: What Your Technician Should Check.

DIY Maintenance vs. What Requires a Licensed HVAC Professional

Homeowners frequently ask which tasks they can perform safely themselves and which require a certified professional. While routine filter replacements are easy DIY tasks, complex technical procedures require specialized tools, safety gear, and EPA certifications.

Safe Homeowner DIY Tasks

• Replacing Air Filters: Inspect 1-inch filters monthly and replace them every 30 to 90 days. Always choose a filter with a MERV rating suitable for your system (MERV 8 to 11 is optimal for standard residential air handlers; MERV 13+ can restrict airflow unless the system was designed for high static pressure). Write the replacement date directly on the filter frame with a marker.
• Clearing Outdoor Unit Surroundings: Keep leaves, weeds, pine needles, and mulch cleared away within a 2-foot clearance radius around your outdoor condenser unit. Ensure at least 5 feet of overhead clearance above the fan discharge screen.
• Flushing the Condensate Line: Pour one cup of distilled white vinegar into the access cap of your primary drain line once a month during spring and summer to suppress algae growth.
• Cleaning Register Vents: Keep indoor supply registers and return grilles vacuumed and unblocked by rugs, curtains, or heavy furniture.

Tasks Requiring a Licensed HVAC Professional

• Refrigerant Pressure Adjustments: EPA Section 608 laws mandate that only certified technicians purchase, handle, or charge refrigerant. Attempting DIY refrigerant additions can damage equipment and cause chemical burns.
• High-Voltage Electrical Diagnostics: Outdoor units house 240-volt electrical circuits and heavy-duty run capacitors that hold dangerous electric charges even when breaker switches are off. Testing motor leads, contactors, and microfarads requires specialized electrical training.
• Deep Coil & Blower Cleaning: Evaporator coils and indoor blower wheels are difficult to access and require chemical solvents, fin tools, and specific disassembly methods that can damage delicate fins or wiring if handled improperly.

What your technician should check during a spring AC visit regarding safe homeowner access

During the spring visit, your technician will also check that your system's setup allows for safe ongoing maintenance throughout the summer. They will verify that attic or crawlspace access paths are safe, inspect primary return register latches, and confirm that unit access panels seal tightly without missing screws or air gaps. Review How an AC Tune-Up Prevents Costly Summer Breakdowns to learn how professional care protects your equipment investment.

How to Verify a Thorough Inspection and Spot Red Flags

Most homeowners are not HVAC experts, which makes it challenging to know whether a technician performed a genuine, thorough check-up or merely did a quick walk-around.

A legitimate spring tune-up takes 60 to 120 minutes to perform correctly. If a technician spends less than 15 minutes at your home, slaps a sticker on the outdoor unit, and hands you a bill without using diagnostic instruments, your system did not receive a thorough inspection.

What Should Be Included in Your Written Service Summary

A trustworthy technician will always provide a detailed written report or digital checklist containing concrete diagnostic numbers, including:

1. Measured Delta T: Exact supply and return air temperatures.
2. Capacitor Readings: Measured microfarad values vs. nameplate ratings (e.g., "Tested 42.1 µF on 45 µF rating — Within safe 10% tolerance").
3. Electrical Amperage: Compressor and fan motor operating amp draws versus nameplate FLA.
4. Refrigerant Line Status: Subcooling/superheat values and confirmation that no active leaks were detected.
5. Drain Line Condition: Confirmation that the primary line was flushed and safety float switches responded properly to testing.

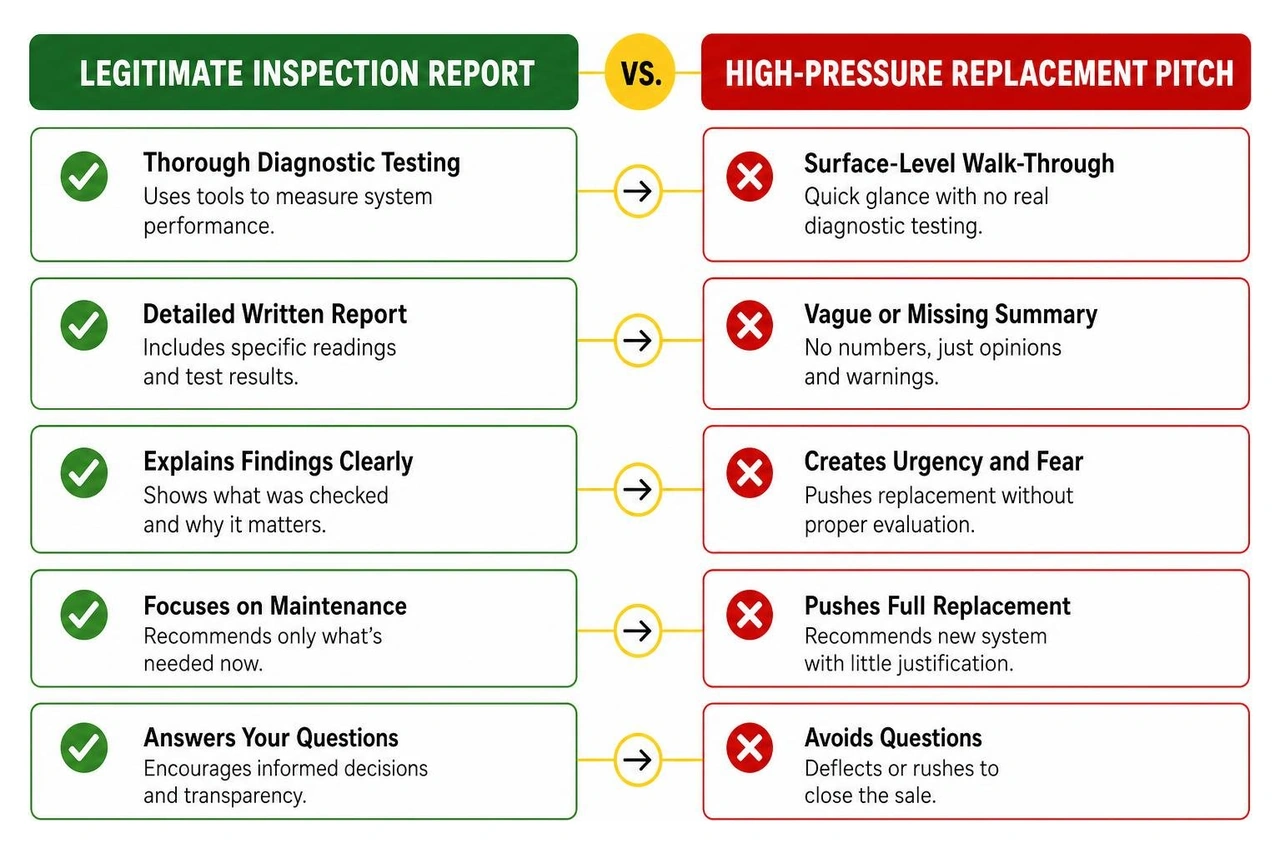

Red Flags: Spotting High-Pressure Sales Pitches

Unfortunately, some door-to-door or budget tune-up promotions are designed as lead-generators for replacement sales calls. Be cautious if you observe any of the following red flags:

• Instant Replacement Recommendations: The technician recommends replacing your entire system within 10 to 15 minutes of arriving, before performing electrical or pressure tests.
• Vague "Cracked Coil" or "Leaking System" Claims Without Proof: Technicians should be able to show you physical evidence—such as electronic leak detector alarms, soap bubble verification, or thermal imaging photos—before declaring a major component dead.
• Refusal to Provide Written Test Values: Honest technicians proudly share measured test numbers. If a tech claims a part is "failing" but cannot provide the actual reading or component rating, get a second opinion.
• High-Pressure Scare Tactics: Be skeptical of assertions like "Your system is a health hazard and must be replaced today." Unless there is an immediate high-voltage hazard or severe carbon monoxide risk (on dual-fuel hybrid systems), you always have time to seek a second opinion.

What your technician should check during a spring AC visit before suggesting repairs

Before recommending repairs or replacements, a responsible technician evaluates your equipment objectively:

• Age of the Equipment: Central air conditioners typically last 10 to 15 years in humid southern climates. If a system under 8 years old has a failed minor part, replacing that component (such as a capacitor, contactor, or fan motor) is usually the best decision.
• Condition and Maintenance History: A well-maintained 12-year-old system with a minor electrical issue may still have years of reliable service left.
• Diagnostic Proof: The technician should explain why a component needs replacement using measured data.

For an in-depth breakdown on local inspection standards, consult our complete AC Inspection Birmingham AL Guide.

Optimal Timing for Scheduling Spring AC Maintenance

Timing your spring AC tune-up correctly ensures your system is ready before the first severe heat wave arrives.

The Ideal Scheduling Window

In the Greater Birmingham area, the optimal window for scheduling spring maintenance is March through April.

• Why Early Spring Is Best: Scheduling early allows you to book convenient appointment times before mid-summer service rushes begin. In March and April, technicians have the dedicated time needed to complete exhaustive multi-point inspections without rushing to back-to-back emergency calls.
• The Outdoor Temperature Threshold: Professional refrigerant and electrical tests require running your cooling system for 15 to 20 minutes. Central air conditioners should never be operated when outdoor temperatures are below 60°F, as running the compressor in cold weather can cause liquid refrigerant slugging and permanent valve damage. Scheduling on a mild spring day above 60°F ensures accurate diagnostic testing.
• The Daylight Saving Memory Trigger: A convenient way to remember your seasonal HVAC maintenance is to tie it to the spring daylight saving time change. When you advance your clocks, call to book your spring AC tune-up.

Frequently Asked Questions About Spring AC Check-Ups

What diagnostic measurements indicate my AC is running properly?

A healthy central air conditioner exhibits four core diagnostic metrics:

1. Delta T (Temperature Split): A supply air temperature that is 15°F to 20°F cooler than the return air temperature.
2. Capacitor Capacitance: Microfarad (µF) test readings within ±10% of the manufacturer's nameplate rating.
3. Motor Amperage: Operating current (amps) below the full-load amp (FLA) rating on the compressor and blower motor data plates.
4. Refrigerant Pressures: Suction and liquid line pressures that align with manufacturer charging charts for ambient outdoor temperatures, showing proper superheat or subcooling without pressure fluctuations.

How does a spring inspection prevent sudden mid-summer breakdowns?

Spring inspections identify wear and tear while components are still functioning, allowing you to replace weak parts before they cause a complete system shutdown. For example:

• Replacing a degrading electrical capacitor during a spring check prevents motor overheating and compressor failure in July.
• Clearing algae out of a condensate line in April prevents water pan overflows that cut power via float switches on hot afternoons.
• Cleaning dirty outdoor coils in spring prevents high operating pressures that cause compressor thermal overload shutoffs during 90°F+ heatwaves.

What should be included in the written summary after a spring visit?

Your post-visit written summary should include:

• Complete list of components inspected and cleaned.
• Measured electrical values (voltages, microfarads, motor amp draws).
• Measured Delta T temperature split readings.
• Condensate drain line flow test results and float switch verification.
• Refrigerant pressure check notes and coil cleanliness evaluation.
• Clear, prioritized technician recommendations separating immediate repairs from future maintenance items.
