How to Fix Electrical Connection Problems That Cause AC Breakdowns

Why Electrical Connection Problems Can Shut Down Your AC

How electrical connection problems cause ac breakdowns is simple: loose, corroded, or damaged connections can block the steady flow of power your system needs. That resistance creates heat, which can damage wires, terminals, capacitors, contactors, motors, and even the compressor. For homeowners who need air conditioning repair in Birmingham, AL, the warning signs may include buzzing, a burning-plastic smell, lights that dim when the AC starts, or a breaker that trips. Even airflow problems, such as a clogged filter, can make electrical parts work too hard and fail.

Explore Air Experts or schedule AC repair.

I'm Steve Etress, and I'll help you understand what these electrical warning signs may mean before a small fault becomes a major AC breakdown.

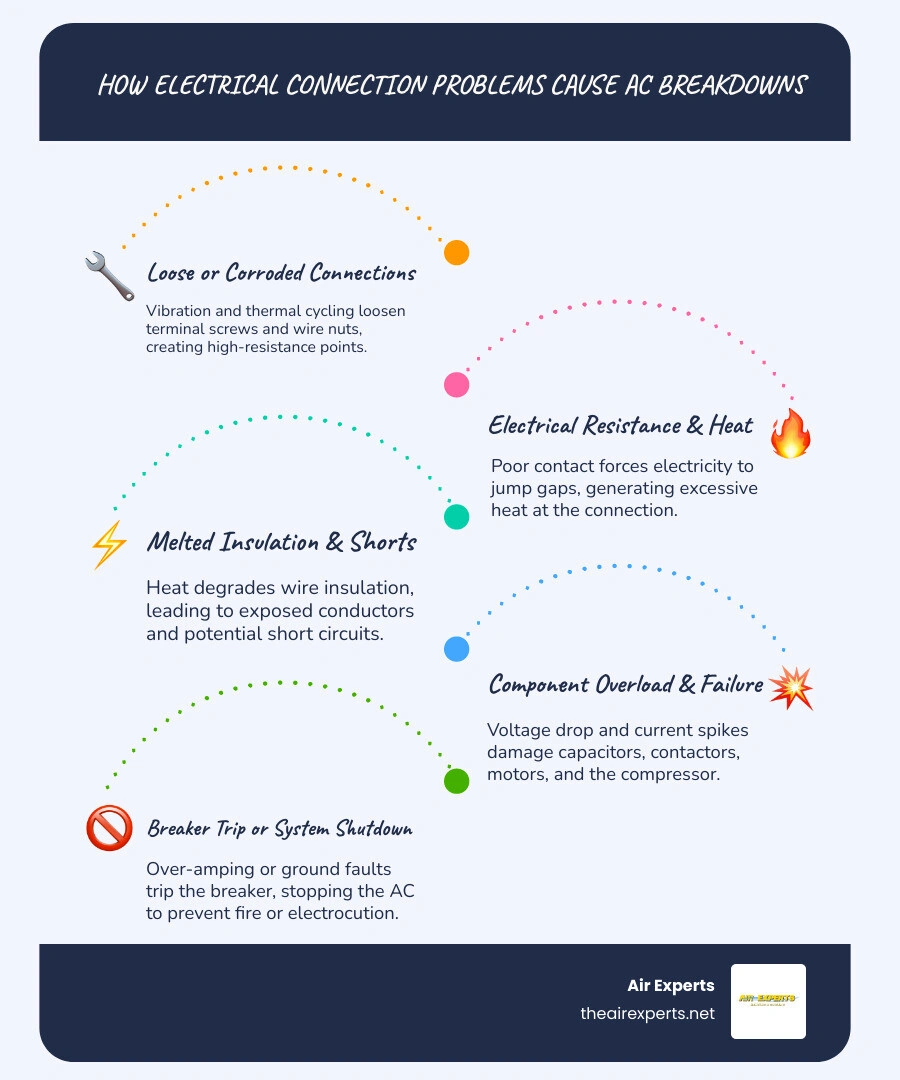

How Electrical Connection Problems Cause AC Breakdowns in Residential Systems

Understanding how electrical connection problems cause ac breakdowns starts with recognizing that your air conditioner is essentially a heavy-duty electrical appliance wrapped around a refrigeration circuit. Running on a dedicated 240-volt circuit, a central air conditioner draws a substantial continuous current—often 30 amps or more—to power the compressor, outdoor condenser fan, and indoor blower motor. When every connection inside the disconnect box and electrical control panel is tight and clean, electricity flows smoothly with minimal resistance. However, when connections degrade, electrical performance plummets.

One of the primary physical drivers of electrical failure is constant vibration. As the outdoor unit operates day after day during hot Alabama summers, the steady hum of the compressor and spinning fan blade creates micro-vibrations. Over thousands of operational cycles, these subtle shakes gradually back out terminal screws, loosen wire nuts, and wiggle electrical lugs free. In addition, daily temperature fluctuations cause thermal expansion and contraction. Copper and aluminum wiring expand as current heats them up and contract as they cool down, physically loosening the terminal contact points over time.

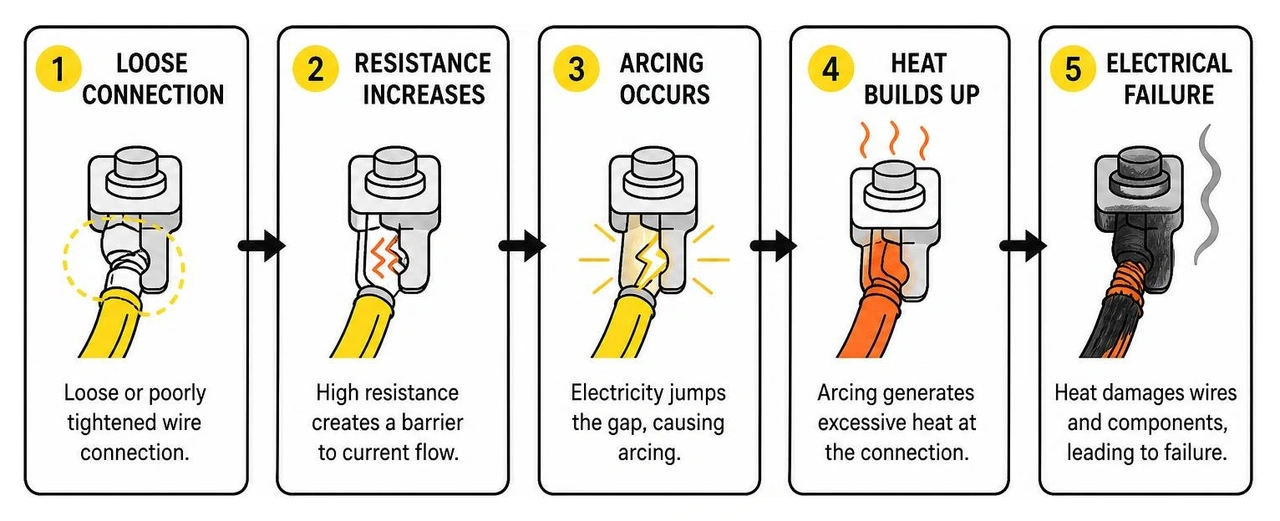

Once a terminal screw or wire connection becomes loose, electrical resistance spikes at that exact point. Resistance inside a high-voltage circuit creates intense localized heat. As current struggles to jump across tiny physical gaps, electrical arcing occurs—a phenomenon that functions like miniature bolts of lightning inside your unit's control cabinet. This arcing generates temperatures hot enough to scorch metal, melt plastic wire insulation, and char surrounding Bakelite mounting boards. As wire sheathing melts away, exposed bare wires can make contact with the metal chassis, causing a direct short circuit or complete system power loss.

Furthermore, environmental conditions accelerate connection failure. Humidity in regions like Hoover, Pelham, and Vestavia Hills leads to moisture buildup inside outdoor electrical cabinets. Moisture causes oxidized corrosion on copper wires and terminal pads, creating a green or white crust that further inhibits current flow. In some cases, improper installation compounds these issues—such as using undersized 12-gauge wire on a 30-amp circuit that calls for 10-gauge wire, or encountering electrical problems after ac installation. Undersized wiring operates under a perpetual overload, generating heat along the entire wire length.

To understand why your circuit breaker reacts the way it does when these connection failures happen, it helps to examine how modern thermal-magnetic breakers protect your home.

When a system suffers from gradual electrical resistance or high motor strain, it usually causes a thermal trip. However, if a loose wire slips out completely and touches the metal casing, it triggers an instant magnetic trip. For a deeper look at breaker issues, explore why ac keeps tripping the circuit breaker or check out why heat pump keep tripping breaker.

How Electrical Connection Problems Cause AC Breakdowns Via Capacitor Failure

If loose wiring is the slow burn of HVAC electrical issues, capacitor failure is the abrupt shock that stops your cooling system in its tracks. Air conditioners rely on two primary types of capacitors housed within the outdoor condenser panel: the start capacitor and the run capacitor.

The start capacitor acts like an energy reservoir, delivering a powerful torque surge of electricity to jumpstart the heavy compressor motor from a dead stop. Once the compressor reaches operating speed, the start capacitor drops out, and the run capacitor takes over. The run capacitor provides a steady, continuous electrical field to keep the compressor and outdoor fan motor humming smoothly throughout the cooling cycle.

When electrical connections leading to or from a capacitor become loose or corroded, voltage fluctuations occur. Capacitors are sensitive to voltage sags and irregular current. Operating under poor electrical connections causes internal heat to build up inside the capacitor, causing its internal dielectric fluid to expand. This often results in the capacitor bulging at the top, leaking fluid, or losing its microfarad (µF) rating.

When a capacitor's microfarad output drops below its required operating tolerance, the compressor experiences "startup hesitation." Instead of starting smoothly, the compressor motor stutters, hums loudly, and struggles to overcome mechanical inertia. This struggle forces the motor to draw massive spikes in current (amperage). Over time, repeated startup hesitation and voltage sag place tremendous mechanical and electrical stress on the motor windings. Left unaddressed, a weak capacitor will inevitably destroy the compressor. If your unit is making loud hums without starting, learn more about protecting your investment with ac compressor repair.

Identifying How Electrical Connection Problems Cause AC Breakdowns Through Pitted Contactors

The contactor is the heavy-duty electromechanical switch responsible for turning your outdoor unit on and off. When your indoor thermostat calls for cooling, a low-voltage (24-volt) signal energizes an electromagnetic coil inside the contactor. This magnetic force pulls down a set of metal contact points, closing the circuit and allowing high-voltage (240-volt) power to stream into the compressor and fan motor.

Under normal conditions, contactor points are coated with a conductive silver alloy designed to withstand repeated electrical engagement. However, every time those contacts open and close, a small electrical arc occurs across the tiny air gap. Over thousands of cooling cycles during hot summer months, this continuous arcing wears down the silver coating, creating carbon buildup, rough surfaces, and deep physical pitting on the contact pads.

Pitted contactors create high electrical resistance, which causes extreme heat. This localized heat can lead to two catastrophic breakdown scenarios:

• Failure to Close (No Cooling): Heavy carbon deposits and severe pitting act as an insulator, blocking electricity from reaching the compressor. The thermostat clicks on, but the outdoor unit not working leaves your home warming up quickly.

• Welded Contacts (Continuous Running): The intense heat generated by continuous electrical arcing can physically weld the contact pads together in the closed position. When this happens, the outdoor unit will run nonstop, regardless of what temperature you set on the thermostat. The indoor unit may cycle off, but the compressor will keep pumping, leading to frozen evaporator coils, liquid refrigerant floodback, and eventual compressor destruction.

If your outdoor unit seems dead or exhibits strange mechanical chatter, you might also wonder why acs outdoor unit is vibrating excessively or check my outdoor unit is not working which local hvac companies can come out today to diagnose it.

Early Warning Signs of AC Electrical Malfunctions

HVAC electrical issues rarely happen without warning. In most cases, your air conditioner sends out clear signals that its electrical infrastructure is deteriorating. Catching these warning signs early can save you from a complete mid-summer breakdown in Chelsea or Trussville.

• Burning Plastic or "Fishy" Odors: One of the most urgent red flags is an acrid burning smell coming from the outdoor unit or through your indoor air vents. Overheating wire insulation, melting electrical tape, or scorching Bakelite contactor bases produce a distinct chemical odor that often smells like burning plastic or fish. This indicates active melting and an immediate fire hazard.

• Buzzing, Humming, or Clicking Sounds: While air conditioners naturally make operational noise, loud electrical buzzing from the outdoor cabinet usually points to a chattering contactor or a struggling relay coil. A deep, persistent humming noise paired with a failure of the fan blade to spin signifies a failing capacitor or a compressor motor undergoing startup hesitation.

• Flickering or Dimming Indoor Lights: If your home's indoor lights momentarily dim or flicker every time the air conditioner kicks on, your system is experiencing severe "voltage sag." This happens because a struggling electrical component—such as a weak capacitor, pitted contactor, or loose connection—forces the compressor to pull an excessive amperage draw just to get moving.

• Intermittent System Shutdowns: If your system randomly turns off mid-cycle or shuts down during peak afternoon heat, internal thermal overload switches may be tripping to protect the motor from permanent heat damage caused by voltage drops.

If you observe any of these symptoms, your system requires immediate attention. Review our guide on when your ac needs immediate repairs to know what steps to take.

How Indirect Factors Overload Electrical Components

Homeowners are often surprised to learn that non-electrical maintenance issues can directly trigger electrical breakdowns. Your air conditioner's mechanical and electrical systems are inextricably linked; strain on one immediately damages the other.

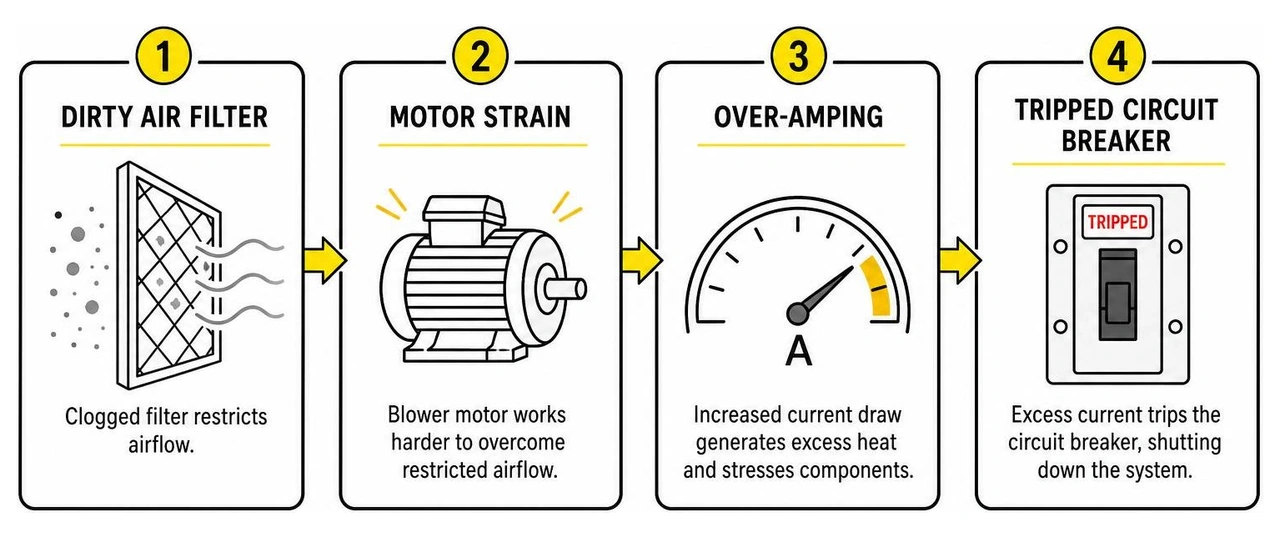

Consider the impact of a clogged air filter or dirty indoor evaporator coils:

• Restricted Airflow: A dirty filter blocks return airflow across the evaporator coil, forcing the indoor blower motor to work significantly harder against high static pressure to draw air through the ductwork.

• Motor Strain and Over-Amping: To overcome this physical resistance, the blower motor demands more electrical current. As amperage draw rises beyond the motor's rated full-load amps (FLA), internal heat builds up rapidly within the copper motor windings.

• Wire Insulation Degradation: Excess heat travels down the power supply wires, degrading terminal insulation, weakening wire nut connections, and breaking down control board circuits.

• Thermal Breaker Trips: Eventually, the continuous current overload trips the bimetallic thermal switch in your breaker panel, shutting down the entire HVAC system.

Similarly, dirty outdoor condenser coils prevent heat from dissipating into the outside air. High head pressures force the compressor to operate under extreme load, over-amping the electrical feed until capacitors bulge, contactors pit, and supply wires overheat. Regular filter changes and coil cleanings are essential electrical protection strategies. For more preventive guidance, read our ac troubleshooting best tips guide and check most common ac repairs and what causes them.

Critical Safety Risks and Immediate Action Steps

Ignoring how electrical connection problems cause ac breakdowns is not just an inconvenience—it is a significant home safety risk. The National Fire Protection Association (NFPA) notes that electrical distribution and lighting equipment are leading causes of home fires, and high-voltage HVAC circuits are prime candidates when connections break down.

One severe hidden danger of long-term electrical arcing is a process known as pyrophoric carbonization. When a loose wire connection inside an electrical box continuously arcs against nearby wood wall framing or structural studs over months or years, the low-grade radiant heat chemically alters the organic structure of the wood. This process lowers the ignition temperature of the timber to the point where it can spontaneously ignite at normal operating temperatures, creating an unseen fire inside wall cavities.

In addition to fire hazards, damaged electrical connections present serious shock risks. Severe grounding faults or loose neutral wires can energize the sheet metal cabinet of the outdoor condenser unit. If a homeowner or child touches a live condenser frame while standing on damp grass in dirty sandals, a dangerous electric shock can occur. High-voltage capacitors also store lethal levels of electrical charge long after power has been turned off at the breaker.

If you suspect an electrical connection problem in your cooling system, take these immediate safety steps:

• Shut Down System Power: Turn off the AC system at the indoor thermostat. Then, walk to your main electrical panel and switch the dedicated AC circuit breaker to the "OFF" position.

• Pull the Outdoor Disconnect: If safe to do so, locate the metal disconnect box mounted on the wall near your outdoor condenser and pull the fuse block or switch the disconnect lever off.

• Avoid Repeated Breaker Resets: Never repeatedly reset a circuit breaker that trips instantly. An instant trip signals a hard short or ground fault; forcing the breaker back on can vaporize copper wiring and spark an immediate electrical fire.

• Call Qualified HVAC Experts: Keep away from the unit and contact licensed HVAC professionals equipped with specialized electrical diagnostic tools.

For further reading on breaker safety, visit ac circuit breaker keeps tripping what it means.

DIY Diagnostics vs Professional HVAC Repair

When an air conditioner stops working on a sweltering 95-degree day in Alabaster or Pelham, homeowners naturally look for quick solutions. While simple troubleshooting is perfectly safe, high-voltage electrical repairs require professional expertise.

Safe DIY Visual Checks

Homeowners can safely perform basic visual checks without opening high-voltage panels or touching electrical wiring:

• Thermostat Inspection: Verify that your thermostat display is active and set to "Cool." If the screen is blank, replace the batteries or check how to check your thermostat before calling for repair and thermostat not working.

• Air Filter Check: Slide out your return air filter. If it is caked in dust and lint, replace it immediately with a fresh filter to relieve motor strain.

• External Circuit Breaker Check: Inspect your main breaker panel. If the AC breaker has moved to the center "tripped" position, flip it firmly to "OFF" once, then back to "ON." If it trips again immediately, stop and do not reset it a second time.

• Outdoor Unit Visual Check: Look around the outdoor condenser from a safe distance. Ensure no vegetation, garden tools, or outdoor debris are blocking airflow or jamming the fan blade. Check for visible signs of pest damage, such as rodents chewing through exterior wiring insulation.

For a complete step-by-step troubleshooting sequence, read our full hvac system troubleshooting guide or our advice on ac troubleshooting tips before calling a professional.

Why Professional Diagnostics Are Necessary

Beyond basic visual checks, opening the electrical service cabinet exposes you to dangerous line voltages ranging from 220V to 240V. Professional HVAC technicians use advanced diagnostic equipment and follow strict safety standards:

• Multimeter Testing: Certified technicians use calibrated digital multimeters to measure exact AC line voltage, control circuit low-voltage (24V), and electrical continuity across contactors and switches.

• Capacitor Microfarad Testing: Using specialized capacitance meters, technicians measure whether capacitors are operating within their specified microfarad (µF) tolerance, catching weak capacitors before they ruin the compressor.

• Amperage Draw Analysis: Using clamp-on ammeters, technicians verify that fan motors and compressors are drawing current within their rated Full Load Amps (FLA) and Locked Rotor Amps (LRA).

• Safe Capacitor Discharge: Technicians safely discharge stored electrical potential in capacitors using insulated resistors before handling any internal terminals.

Frequently Asked Questions About AC Electrical Issues

Why does my AC breaker trip immediately after I reset it?

An immediate breaker trip—occurring within a fraction of a second after flipping the switch—is known as a magnetic trip. This indicates a severe electrical fault, such as a dead short circuit or a ground fault. This happens when a hot high-voltage wire loses its insulation and contacts a neutral wire, a ground wire, or the metal frame of the unit. It can also indicate a seized compressor motor with shorted internal windings. Never force a breaker to stay on when it trips immediately, as doing so bypasses built-in safety controls and can trigger an electrical fire.

Can a dirty air filter really cause an electrical breakdown?

Yes, absolutely. A clogged air filter restricts return airflow across the evaporator coil. To overcome this resistance, the indoor blower motor must work much harder, causing its electrical amperage draw to spike well above normal operating levels. This excess current generates severe heat inside the motor windings, which degrades wire insulation, scorches electrical connections on the control board, and eventually trips thermal circuit breakers or blows thermal fuses. Replacing your air filter regularly is one of the easiest ways to prevent electrical overload.

What is that burning smell coming from my vents?

A distinct burning smell—often resembling burnt plastic, melting rubber, or a fishy chemical odor—means that high-voltage wire insulation, plastic wire connectors, or Bakelite component bases are actively overheating and melting due to high resistance or electrical arcing. If you notice this odor coming from your vents or outdoor unit, turn off your AC system at both the thermostat and the main breaker panel immediately. Do not run the system until a certified technician inspects and repairs the damaged electrical wiring.

Protecting Your AC and Home from Electrical Failures

Now that you understand how electrical connection problems cause ac breakdowns, you can see why prompt attention to electrical warning signs is critical. What starts as a minor loose wire screw or a pitted contactor can rapidly escalate into destroyed capacitors, burnt compressor motors, or dangerous household electrical hazards. Regular preventive maintenance—including tightening electrical terminals, testing capacitor microfarads, checking voltage stability, and clearing dirty coils—is your best defense against unexpected mid-summer failures.

At Air Experts, we are proud to serve homeowners throughout the Greater Birmingham area, including Hoover, Pelham, Chelsea, Vestavia Hills, Trussville, Sylacauga, and surrounding communities. Our family-owned company operates on a simple promise: "No Upselling. No catch. Just Honest, Quality Service." Whether you need fast 24/7 emergency repair for a tripped breaker, expert electrical diagnostics, or comprehensive routine maintenance, our team delivers prompt, professional solutions focused on your family's safety, comfort, and indoor air quality.

Don't wait for a small electrical buzz to turn into a total system shutdown. Schedule expert AC repair and electrical inspection with Air Experts today, or call our friendly team to restore total reliability to your cooling system!
