Why Does My Thermostat Blank Out When I Switch to Heat Mode?

The Sudden Chill: Why Your Thermostat Screen Just Went Black

"Why does my thermostat blank out when I switch to heat mode?" is a question many homeowners ask when the first true chill of the season arrives. You walk over to the wall, switch the system from cooling to heating, and instantly, the digital screen goes completely black. The immediate reaction is usually panic—especially during that sudden September heating changeover in Birmingham AL. At The Air Experts, our team always sees a sudden spike in emergency calls when fall temperatures unexpectedly drop and you need warmth quickly. The good news is that the thermostat itself is rarely broken. Instead, that blank screen is a symptom of a larger electrical disconnect within your HVAC system.

Modern hardwired thermostats do not generate their own power; they rely on a continuous flow of 24-volt AC power from the furnace transformer. When that power is abruptly severed, the thermostat screen dies immediately. Restoring that connection requires professional diagnostics to ensure you do not risk further damage to the system's sensitive internal components. If you are experiencing this sudden loss of power, reaching out for professional heating services is the safest and most effective way to restore your home's comfort without creating a safety hazard.

Understanding the Furnace's Low-Voltage Fuse

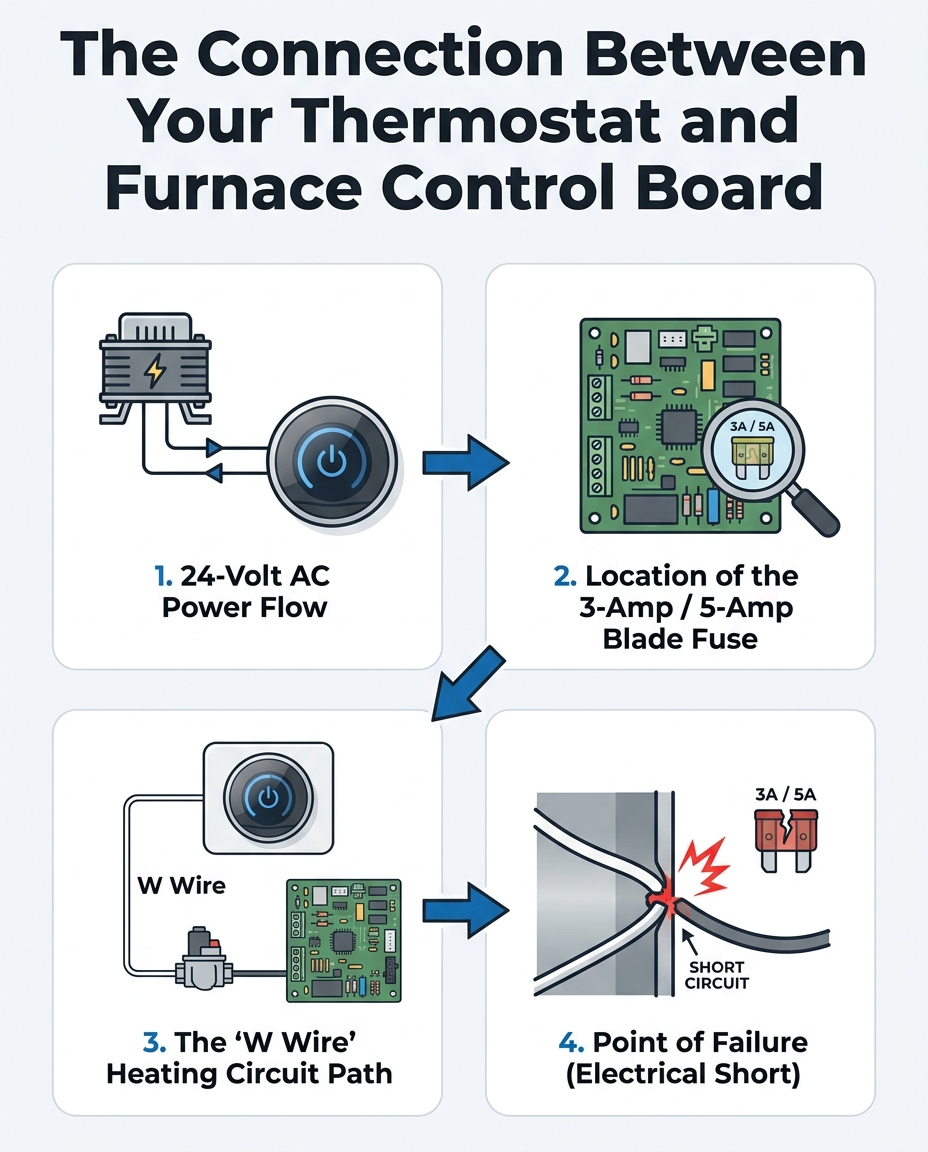

To understand why your screen went dark, you have to look inside the furnace rather than at the wall. Hardwired thermostats communicate with your heating and cooling equipment using a low-voltage electrical circuit. The heart of this communication network is the furnace control board, which sends a steady 24-volt electrical current up to the thermostat to keep the display active and read your temperature commands.

To protect this expensive control board from electrical surges, manufacturers install a small, automotive-style blade fuse—typically a 3-amp or 5-amp fuse—directly onto the board. This tiny component acts as the gatekeeper for the entire low-voltage system. If you want to know what to do when your thermostat goes silent, the first thing our technicians check when arriving at a Birmingham home is the status of this specific fuse. When an electrical anomaly occurs anywhere in the system, this fuse is designed to blow, instantly severing the 24-volt connection. The moment that fuse pops, your thermostat loses its power source, resulting in a completely blank screen.

How the Control Board Protects Itself

The low-voltage fuse acts as a deliberate weak link in your HVAC system's electrical chain. Without this fuse in place, an electrical short would send a surge of excessive amperage straight into the furnace control board, frying the delicate microprocessors and resulting in a catastrophic system failure. By sacrificing itself, the inexpensive fuse absorbs the hit and shuts down the circuit, saving the main control board from destruction. Therefore, a blank thermostat is actually a sign that your system's built-in safety mechanisms are working exactly as intended during the September heating changeover.

Why Does the Fuse Only Blow When Switching to Heat Mode?

One of the most frustrating aspects of this problem is the timing. Your air conditioning likely ran flawlessly all summer long, but the exact second you switch to heat mode, the system dies. This happens because the cooling and heating circuits use entirely different wires and components within the HVAC system. The transition from intense summer cooling to sudden fall heating creates unique stress that exposes dormant electrical issues.

Inside your thermostat wire bundle, different colored wires control different functions. The "Y wire" controls your air conditioning compressor, while the "W wire" controls your heating system. If there is an electrical short specifically located on the W wire or within the internal heating components, that short can remain completely dormant and undetected all summer long while the cooling circuit does the heavy lifting. Our team covers these seasonal operational differences frequently in our heating and cooling FAQs, as it's a pattern we see often during the transition from summer.

• R / Rc / Rh Wire — Primary Function: 24-Volt Power Supply — Seasonal Usage Pattern: Active year-round (Provides screen power)

• Y Wire — Primary Function: Cooling Circuit (AC/Compressor) — Seasonal Usage Pattern: Active during summer months

• W Wire — Primary Function: Heating Circuit (Furnace) — Seasonal Usage Pattern: Active during fall and winter months

• G Wire — Primary Function: Blower Motor (Fan) — Seasonal Usage Pattern: Active year-round

The moment of truth arrives during the September heating changeover. The very first time your thermostat calls for heat, electrical current travels down the W wire, hits the dormant short, and instantly draws too much amperage. Within a fraction of a second, the low-voltage fuse on the control board blows to protect the system, and your thermostat screen goes black. It is a highly common, well-documented phenomenon that occurs during the first major cold snap.

Common Culprits Behind a Heating-Circuit Electrical Short

Understanding that an electrical short blew the fuse is only half the battle. The real challenge is determining what caused the short in the first place. These issues rarely resolve themselves, and identifying the root cause requires a thorough inspection of the internal furnace components and wiring.

Here are the most common culprits our technicians find that trigger an electrical short in the heating circuit:

• Frayed or damaged thermostat wiring: Over the summer, rodents often seek shelter in attics or basements and chew through the protective casing of the thermostat wire bundle. Accidental damage from home renovations can also expose the copper wiring, causing the W wire to ground out against metal ductwork.

• A failing gas valve: Internal furnace components, such as the gas valve, rely on precise electrical currents. If a valve begins to fail or seize up, it can draw significantly more amperage than the circuit is designed to handle, instantly popping the 3-amp fuse.

• Worn contactors and loose connections: The constant vibration of the HVAC system over the years can cause wire connections to loosen. If a loose wire vibrates against the metal furnace casing when the heating cycle initiates, it creates a direct electrical short.

• Water damage and lingering condensation: Lingering moisture from the summer season can wreak havoc on electrical components. For example, one local homeowner recently called our team for general heating and cooling needs. Our technicians performed preventative maintenance and thoroughly cleaned both air conditioning units. The air conditioner was repaired and serviced, improving its performance. More importantly, this proactive cleaning removed lingering moisture and condensation from the summer season that could have easily dripped onto the control board and caused a heating-circuit short.

The Danger of the 'Quick Fix': Why You Shouldn't Just Replace the Fuse

When homeowners learn that a simple blown fuse is responsible for their blank thermostat, the temptation to perform a quick DIY fix is incredibly strong. However, simply opening the furnace panel and pushing a new 3-amp automotive fuse into the control board is an exercise in futility—and a significant safety hazard. As long as the underlying electrical short exists in the heating circuit, the new fuse will blow the exact second the heat kicks on again.

The extreme danger of up-sizing the fuse: Out of frustration, some individuals attempt to bypass the problem by inserting a higher-amperage fuse, such as a 10-amp or 15-amp blade, hoping it will hold the current. This is a disastrous mistake. By increasing the fuse size, you remove the deliberate weak link. In our years of repairing furnaces across Birmingham, we've seen countless instances where what could have been a minor diagnostic repair suddenly turns into a massive system overhaul because the excessive amperage traveled directly into the control board, permanently destroying it and potentially sparking an electrical fire inside the furnace casing.

Tracking down a low-voltage short requires digital multimeters, highly specific manufacturer wiring schematics, and professional electrical training. Opening furnace panels and handling internal wiring carries a significant risk of electrical shock or further system damage. During the September heating changeover, it is always best to leave this highly technical diagnostic work to licensed professionals providing furnace repair in Birmingham.

When to Call for Emergency Heating Troubleshooting

A blank thermostat ultimately means you have zero heat. When temperatures drop rapidly in Birmingham AL, losing your heating system is not just an inconvenience; it can quickly become a comfort and safety issue for your family. Immediate action must be taken during a cold snap to restore functionality to your home.

Professional HVAC technicians have the specialized tools, such as amp clamps and multimeters, to safely isolate the electrical short without risking damage to the control board. They can test each individual wire and component in the heating circuit to pinpoint exactly where the amperage spike is occurring. Once the short is properly diagnosed and the damaged wire or component is repaired, replacing the blown fuse is a straightforward process for an experienced professional.

Routine maintenance plays a massive role in catching these issues early. During a recent routine maintenance visit for a customer's upstairs and downstairs systems, one of our technicians corrected a drain line issue that other companies had completely ignored. The neglected drain line issue was corrected during routine maintenance, preventing water from eventually backing up, spilling over the internal furnace components, and triggering the exact type of electrical short that blows a furnace fuse.

When you are left in the cold, fast response times matter. The Air Experts provide reliable 24-hour emergency repair dispatch, ensuring homeowners aren't left shivering in the cold waiting for a callback. A qualified technician can restore your heat safely, ensuring the electrical integrity of your system is fully intact.

Preventing Electrical Shorts Before the Cold Hits

The best way to handle a blown furnace fuse is to prevent the short from occurring in the first place. The sudden transition from summer cooling to fall heating places immense stress on your system, but proactive care can mitigate the risk of a sudden failure during the September heating changeover.

Pre-season inspections are incredibly valuable for catching frayed wires, loose connections, and signs of rodent damage before you actually need to turn the heat on. During a thorough fall tune-up, a licensed technician will test the amperage draws on all internal heating components. If a gas valve or contactor is beginning to fail and draw too much power, the technician will identify the anomaly with a multimeter long before it has the chance to blow the low-voltage fuse on a freezing night.

The long-term benefits of routine maintenance: Keeping your internal components clean, securing loose wiring, and ensuring proper drainage extends the lifespan of your furnace control board. Based on what we see in the field, enrolling in a preventative HVAC maintenance plan is the most reliable way to ensure that a professional is evaluating your system's electrical health twice a year. We highly encourage proactive scheduling before the first major temperature drop hits Birmingham AL, ensuring your system is ready to seamlessly transition into heat mode.

Frequently Asked Questions About Thermostats and Heating Failures

Why does my thermostat go blank when the heat turns on?

Your thermostat goes blank when the heat turns on because an electrical short in the heating circuit has caused the furnace's low-voltage fuse to blow. This fuse protects the main control board from power surges. When it blows, it severs the 24-volt power supply that keeps the thermostat screen active, resulting in an immediate loss of power.

Is there a fuse in my thermostat?

No, the fuse that controls the power to a hardwired thermostat is not located inside the thermostat itself. The 3-amp or 5-amp automotive-style blade fuse is located down on the furnace control board. The thermostat relies entirely on the furnace to send power up through the wiring.

How do I fix a blank thermostat screen?

Fixing a blank thermostat screen requires finding and repairing the underlying electrical short before replacing the blown furnace fuse. Because this involves handling internal furnace wiring and using specialized multimeters to test amperage draws, you must call a licensed HVAC professional to perform the repair safely.

Why does my thermostat lose power in heat mode?

Your thermostat loses power in heat mode because the heating circuit uses a different wire (the W wire) than the cooling circuit. If there is a dormant electrical short on the W wire or within the heating components, the short is only triggered the moment you call for heat, which blows the fuse and cuts the power.

Can a bad furnace control board cause a blank thermostat?

Yes, a completely failed furnace control board can definitely cause a blank thermostat. If the control board is damaged by water, a massive power surge, or a bypassed fuse, it will no longer be able to send the required 24 volts of alternating current up to the wall unit, leaving you with a blank screen and no heat in your Birmingham AL home.

Restore Your Heat Safely and Quickly

If you are still wondering, "Why does my thermostat blank out when I switch to heat mode?", remember that it is a protective mechanism, not a disaster. The blank screen during the September heating changeover means your furnace successfully defended its control board against a dangerous electrical short. However, ignoring the underlying short or attempting to bypass the fuse is a major safety hazard.

Promptly contacting our local experts for safe, efficient diagnostics is the only way to resolve the issue properly. A licensed professional from The Air Experts will track down the short, repair the compromised wiring, and replace the fuse, providing you with a clear, reassuring explanation of the process so you can enjoy reliable warmth all winter long.
